Function Instruction:

● 99 wireless defense zones, 8pcs wireless remote controllers (App can only show 50 defense zones at most)

● Can store 6 phone numbers: when alarming, system will make alarm call to these numbers automatically;

● Can store 3 SMS numbers: when alarming, system will send alarming SMS automatically;

● 3 groups of timely arm and disarm;

● 10-second automatic message recording;

● The names of each defense zone can be revised.

● Support wireless siren (315MHz frequency, customized for other frequency)

● Program the defense zone into immediate, delay, 24hours, doorbell , elder zone, bypass model.

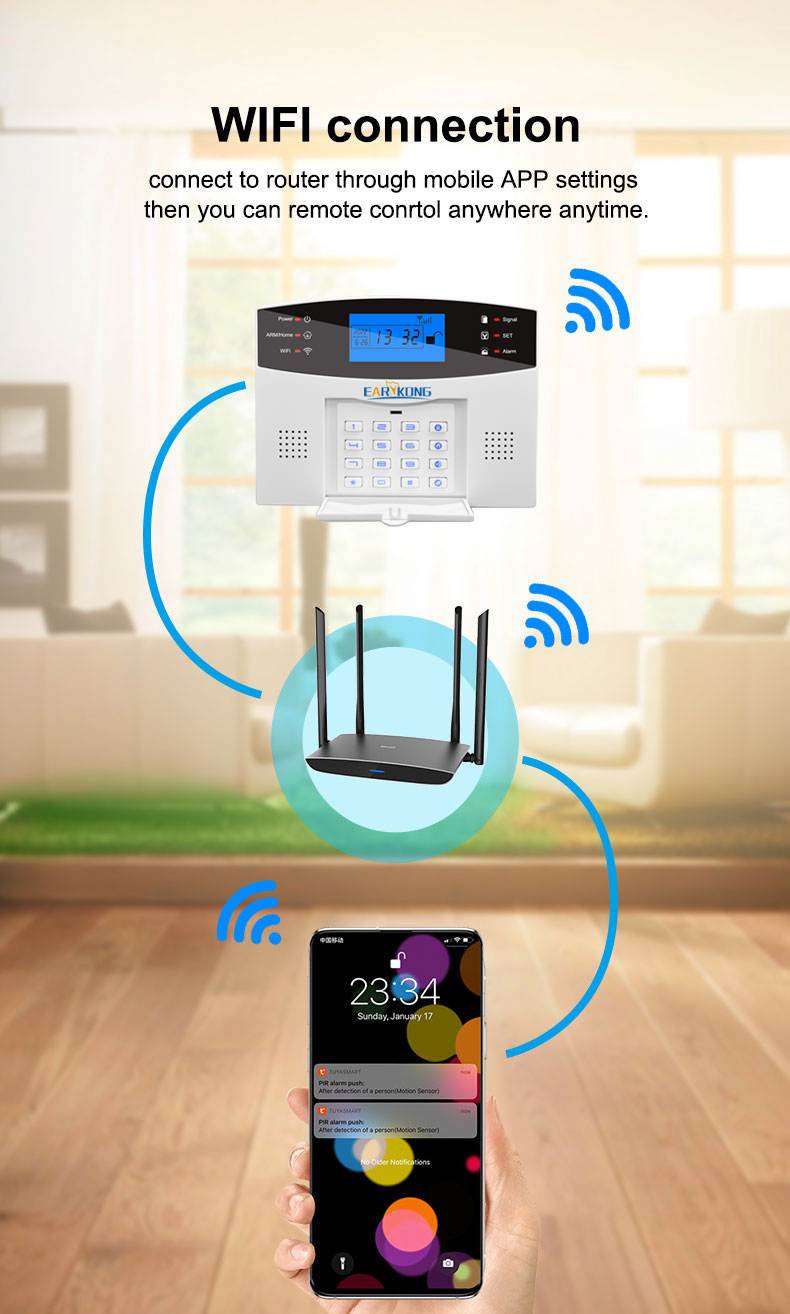

● Remote control in different places, host arming, disarming, monitoring, intercom and other functions;

● Low battery alert of the accessories;

● Built-in rechargeable battery; Power-Off SMS notification.

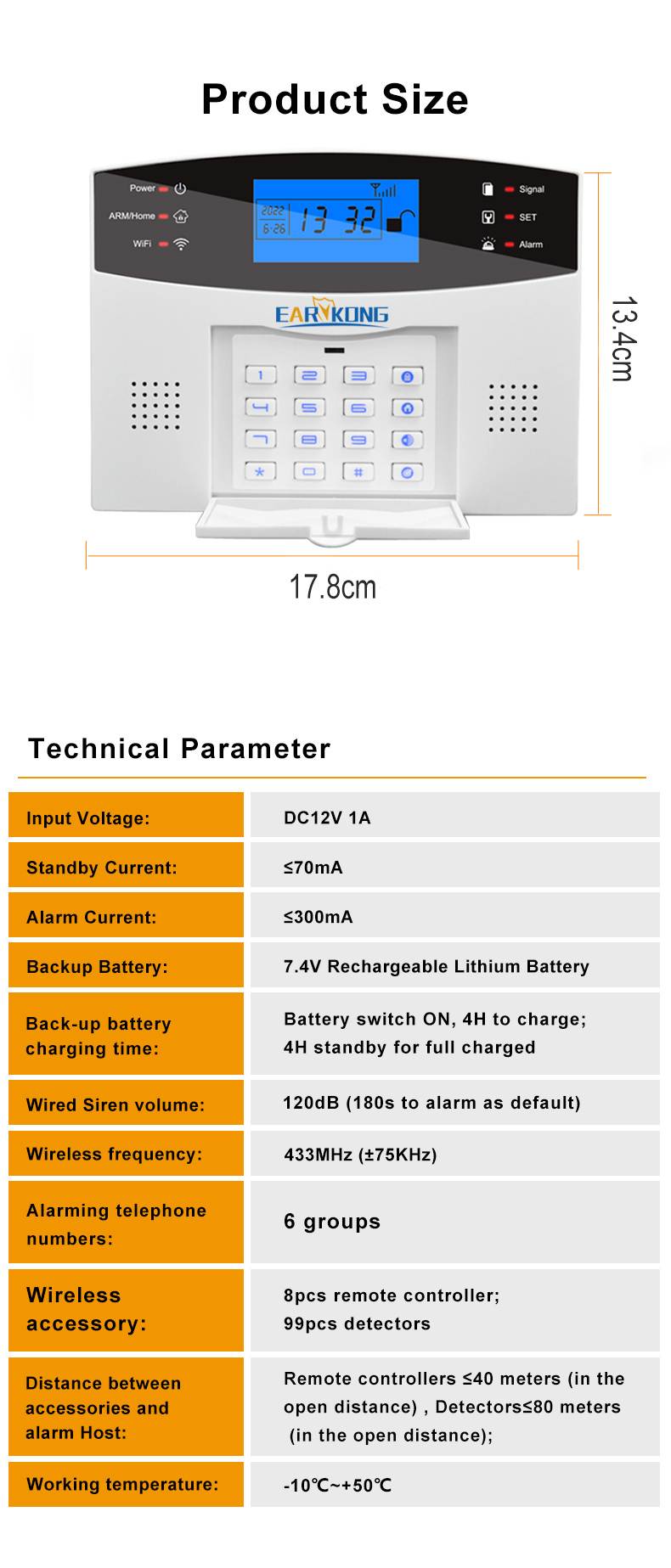

Specifications：

Input Voltage: DC12V 1A

Standby Current: ≤70mA

Alarm Current: ≤300mA

Backup Battery: 7.4V Rechargeable Lithium Battery

Back-up battery charging time: Battery switch ON, 4H to charge; 4H standby for full charged

Wired Siren volume: 120dB (180s to alarm as default)

Alarm host Receiving Frequency: 433MHz（±75KHz），PT2262/4.7MΩ EV1527/300K

Alarm host transmitting frequency: 315MHz（±75KHz），PT2262/4.7MΩ EV1527/300K

alarming telephone numbers: 6 groups

Wireless accessory: 8pcs remote controller; 99pcs detectors

Distance between accessories and alarm Host:

Remote controllers ≤40 meters (in the open distance) ,

 Detectors≤80 meters (in the open distance);

Factory default program password: 8888

Factory default Operation password: 1234

Working temperature: -10℃~+50℃
