Overview:

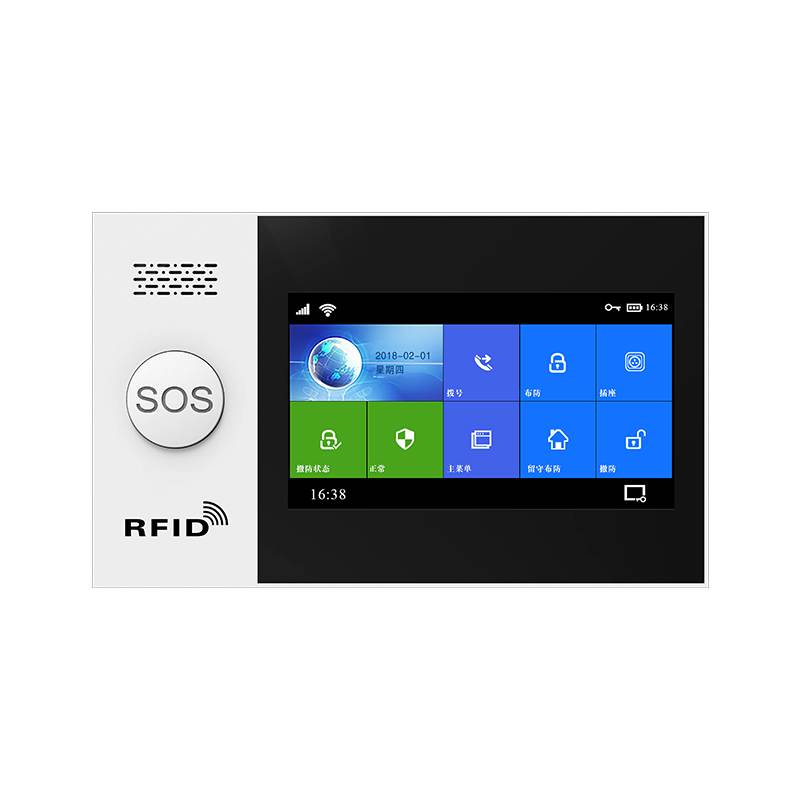

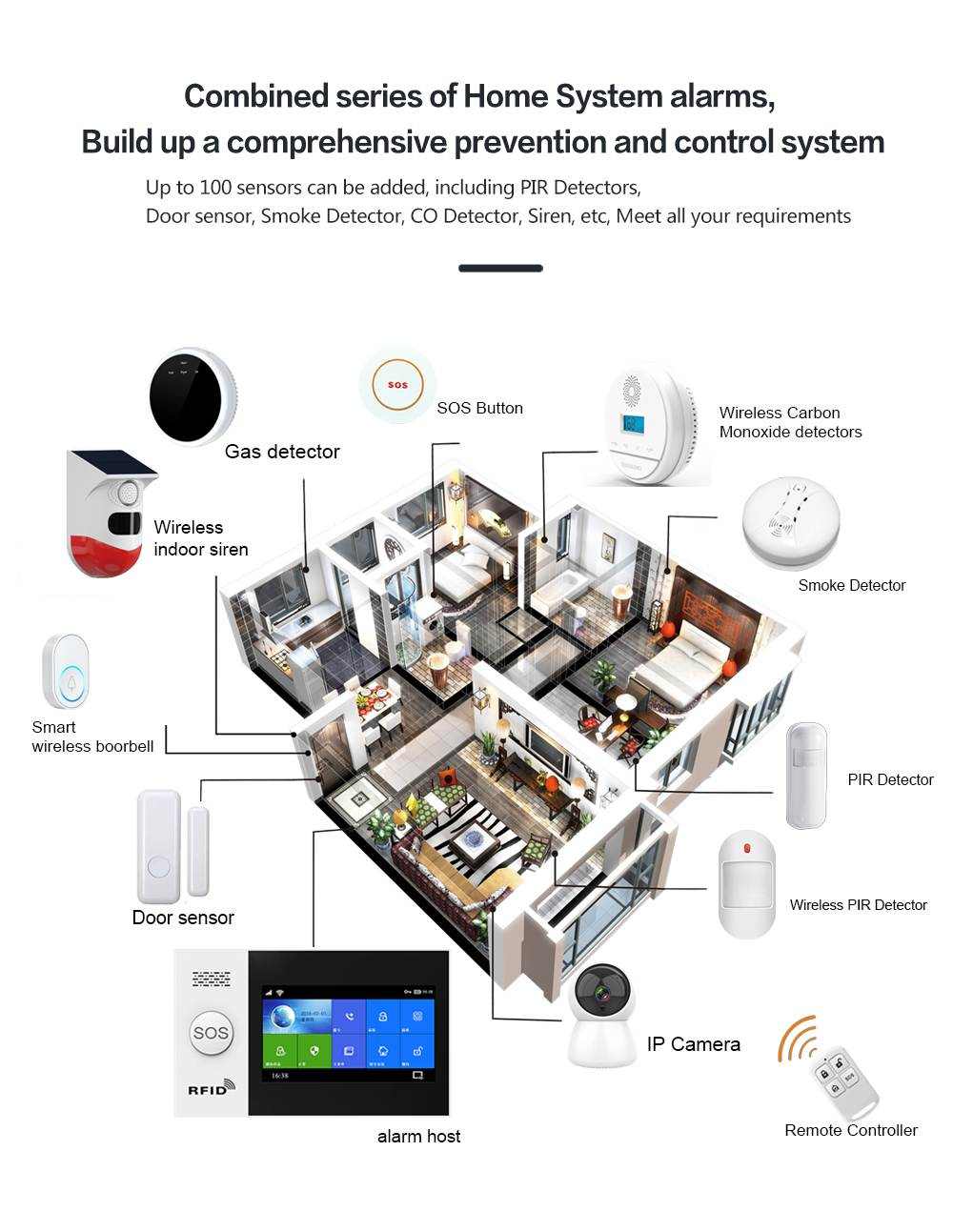

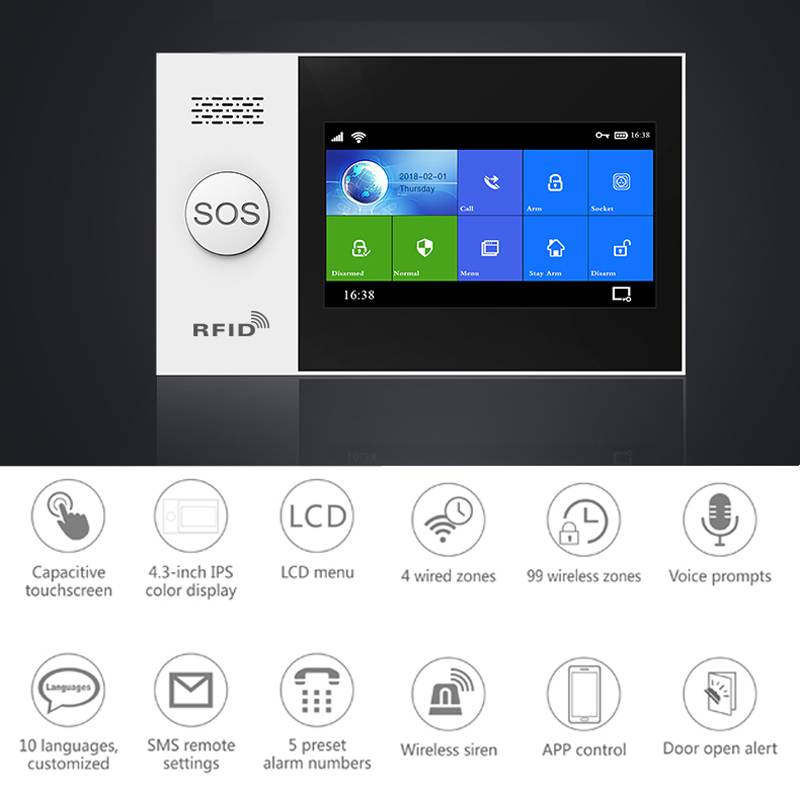

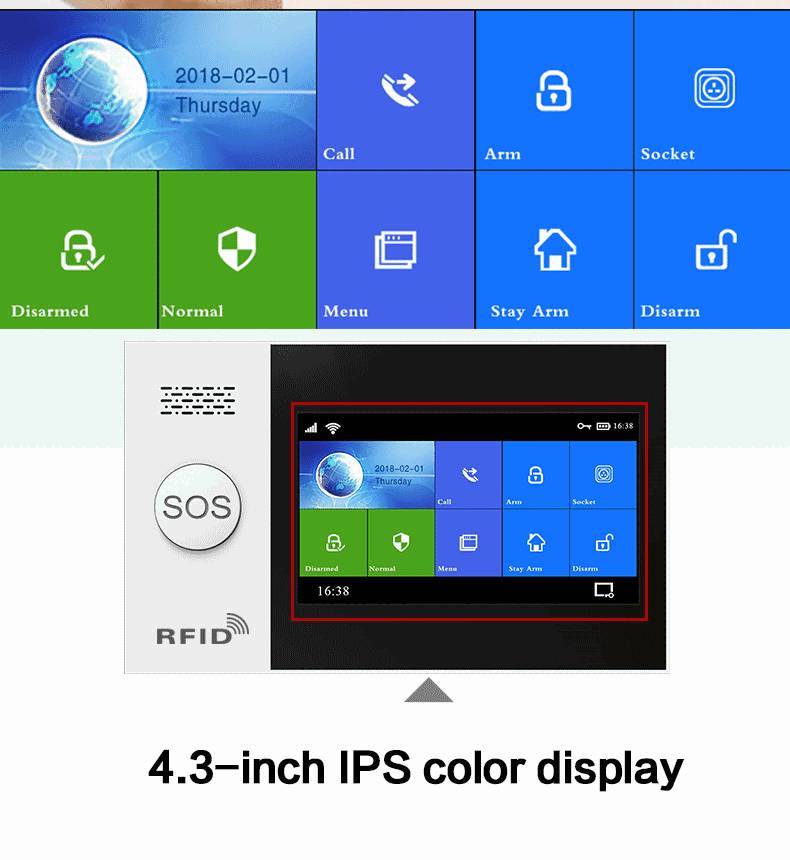

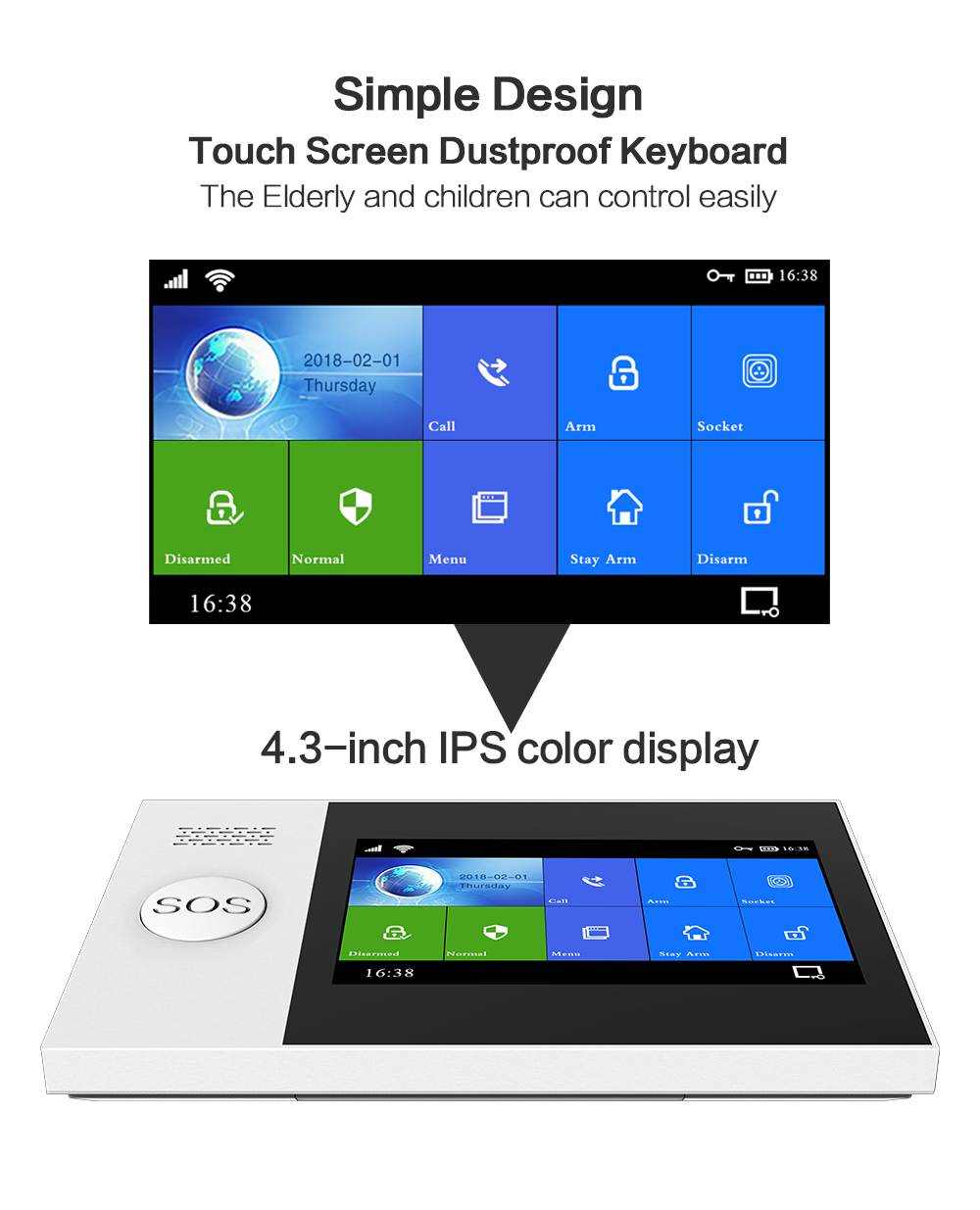

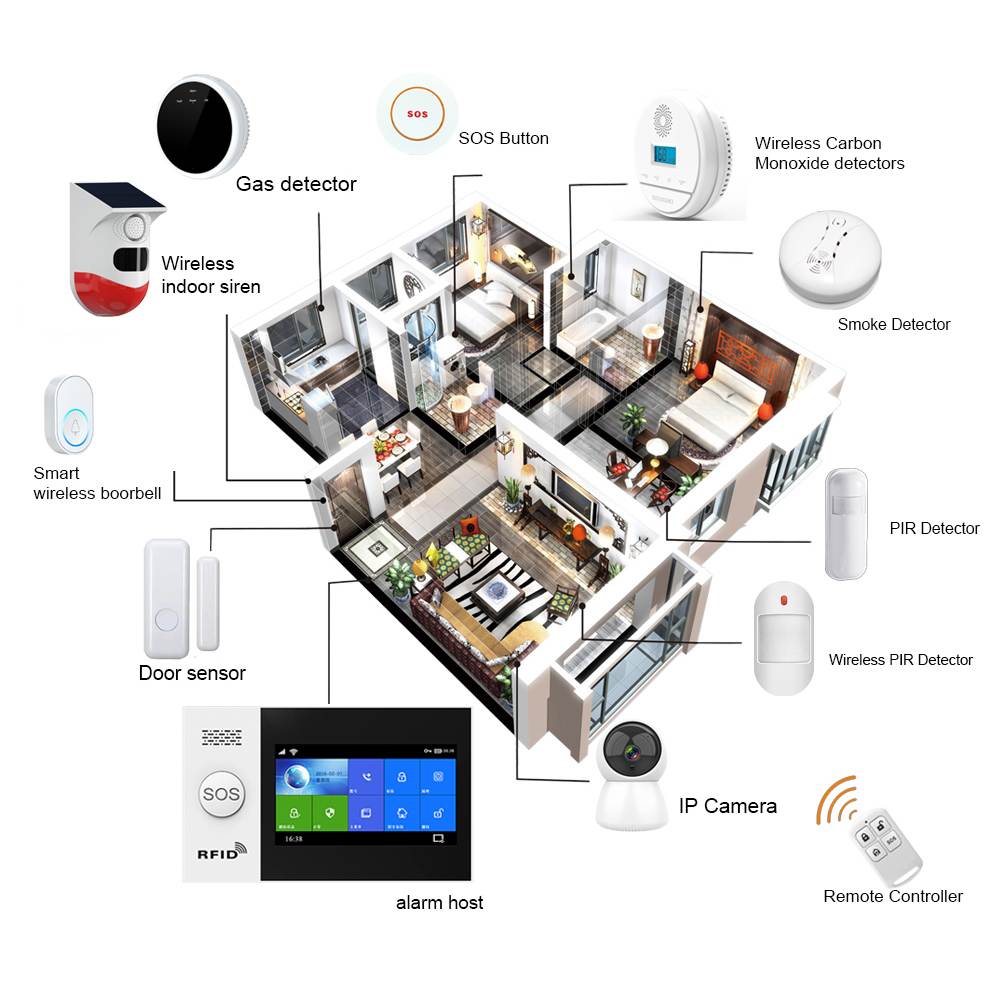

This is a advanced multi-network alarm system that integrates GSM, WiFi, and GPRS connectivity for robust and reliable home or business security. It features a 4.3-inch IPS capacitive touchscreen for intuitive operation and supports remote monitoring and control via mobile app, SMS, and voice calls. Designed for comprehensive protection, it can manage up to 100 wireless devices (sensors, remotes, RFID tags) and 4 wired zones, making it ideal for residential and commercial security applications.

Technical Specifications:

• Power Supply: DC5V via Micro USB (included 5V/2A adapter)

• Backup Battery: 2.7V/1000mAh lithium battery

• Standby Current: <140mA (screen off), <280mA (screen on)

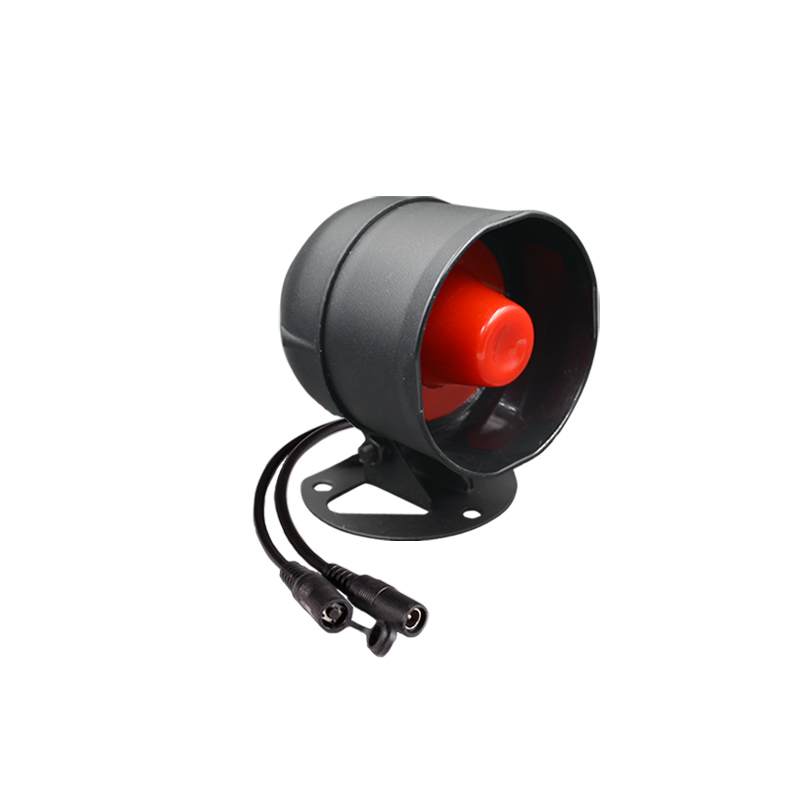

• Siren Output: <560mA

• Wireless Frequency: 433MHz (EV1527 encoding)

• GSM Bands: 850/900/1800/1900MHz

• WiFi Standard: IEEE 802.11b/g/n (2.4GHz only)

• Operating Temperature: -10°C to 55°C

• Humidity: ≤80% RH (non-condensing)

• Dimensions: 160×98×19mm
