Function Introduction

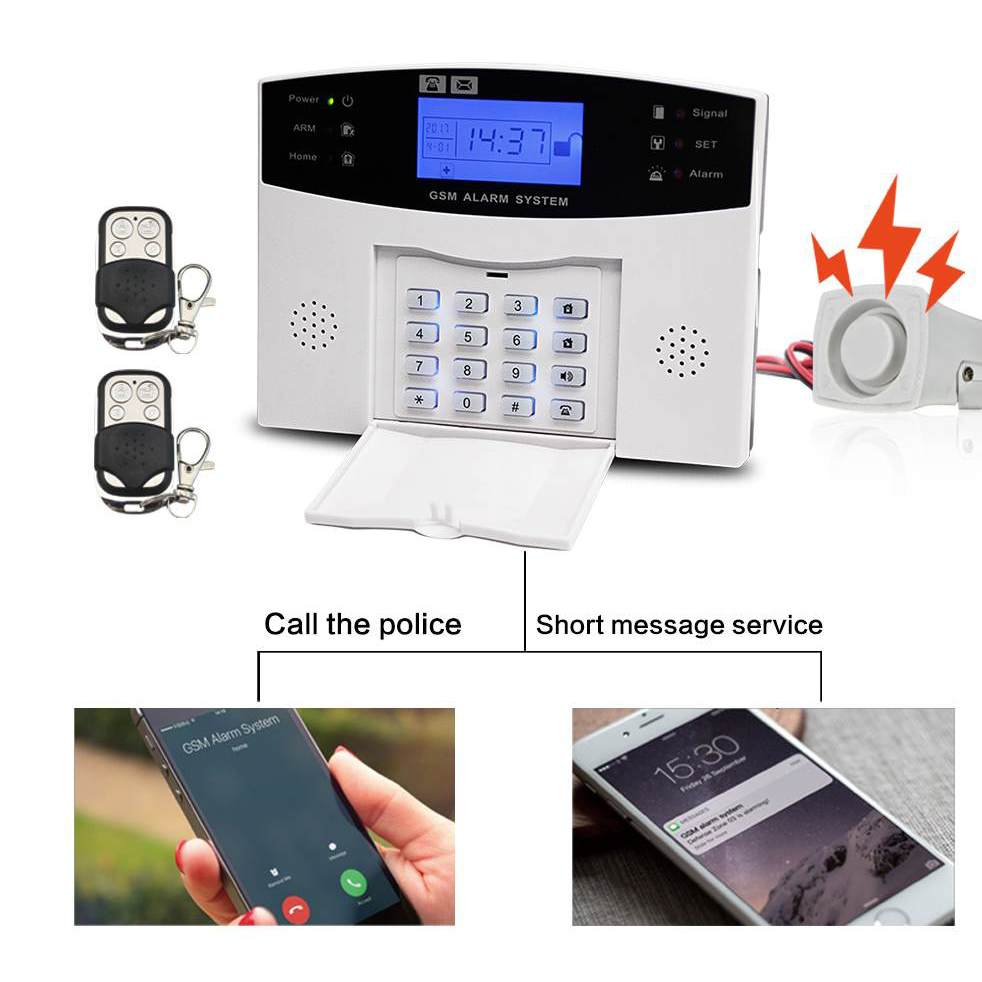

•Wifi &4G/GSM dual networking, support APP Push,SMS push voice monitoring and other multi-channel alarm mode.

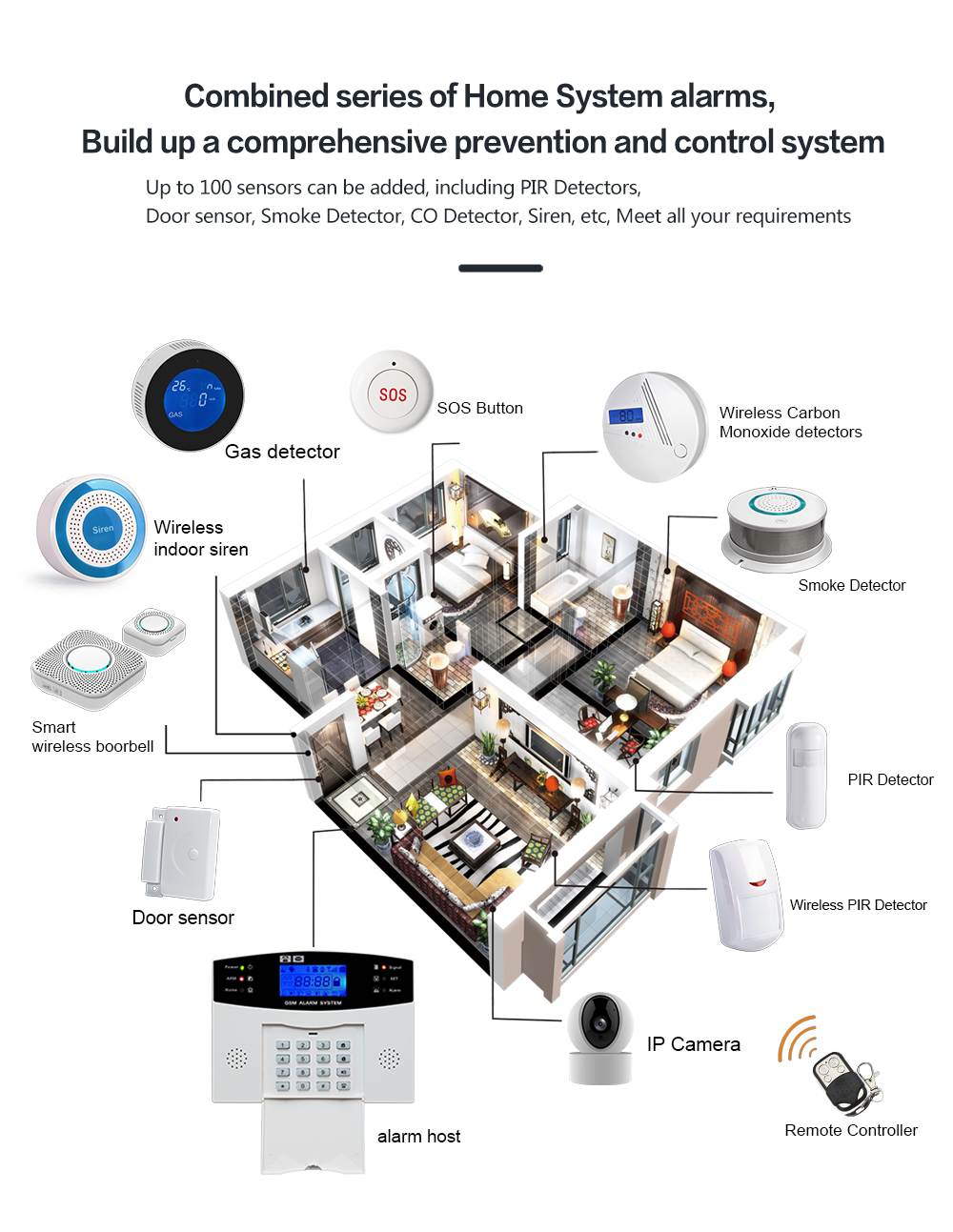

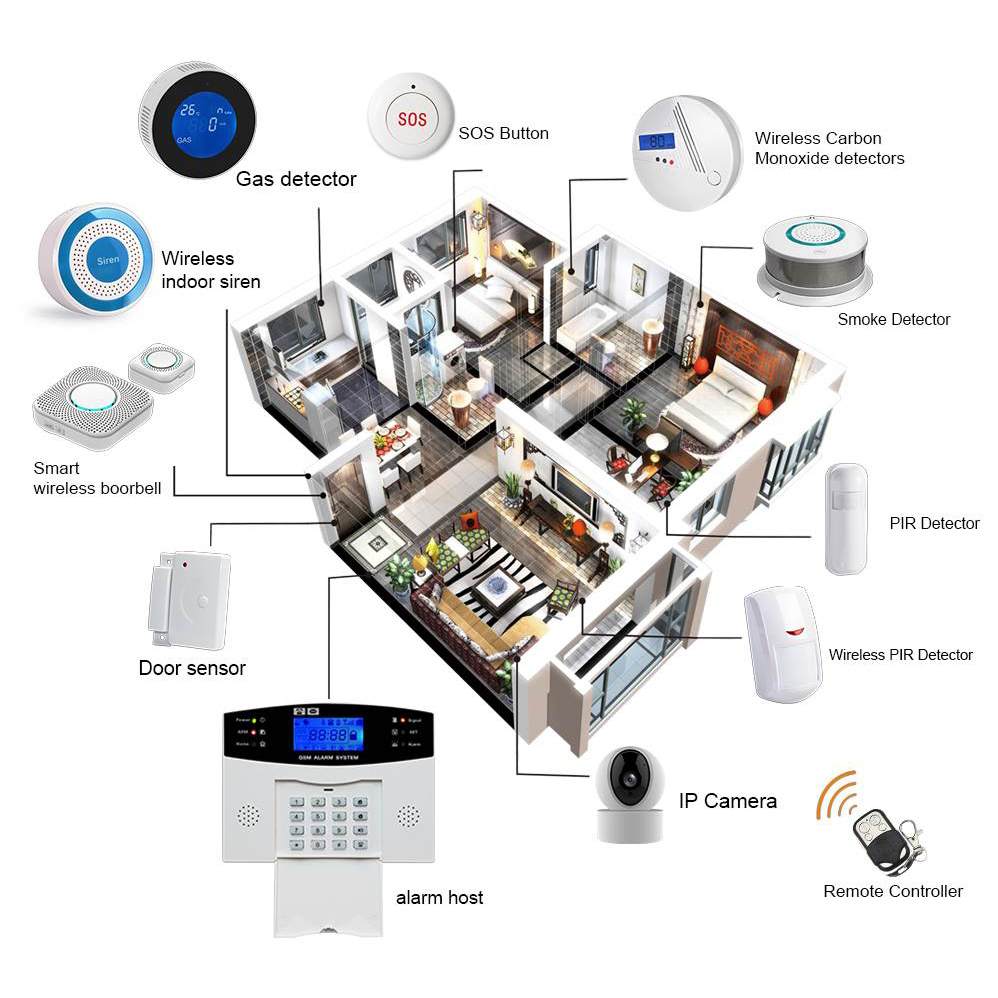

•8 wired defense zones,200 wireless defense zones【support for renaming】

•Up to learn 8 wireless remotes.

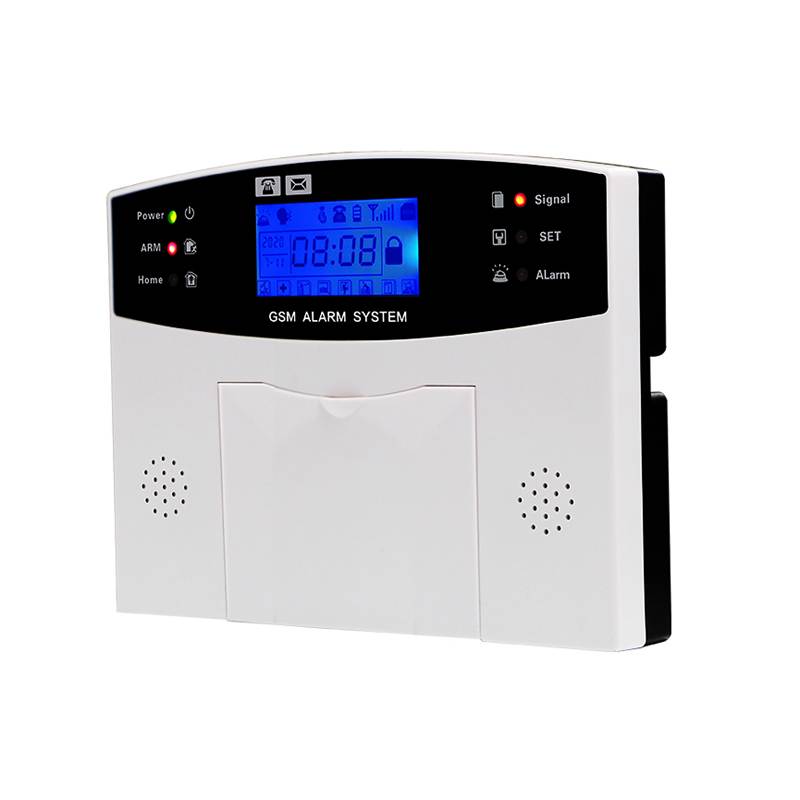

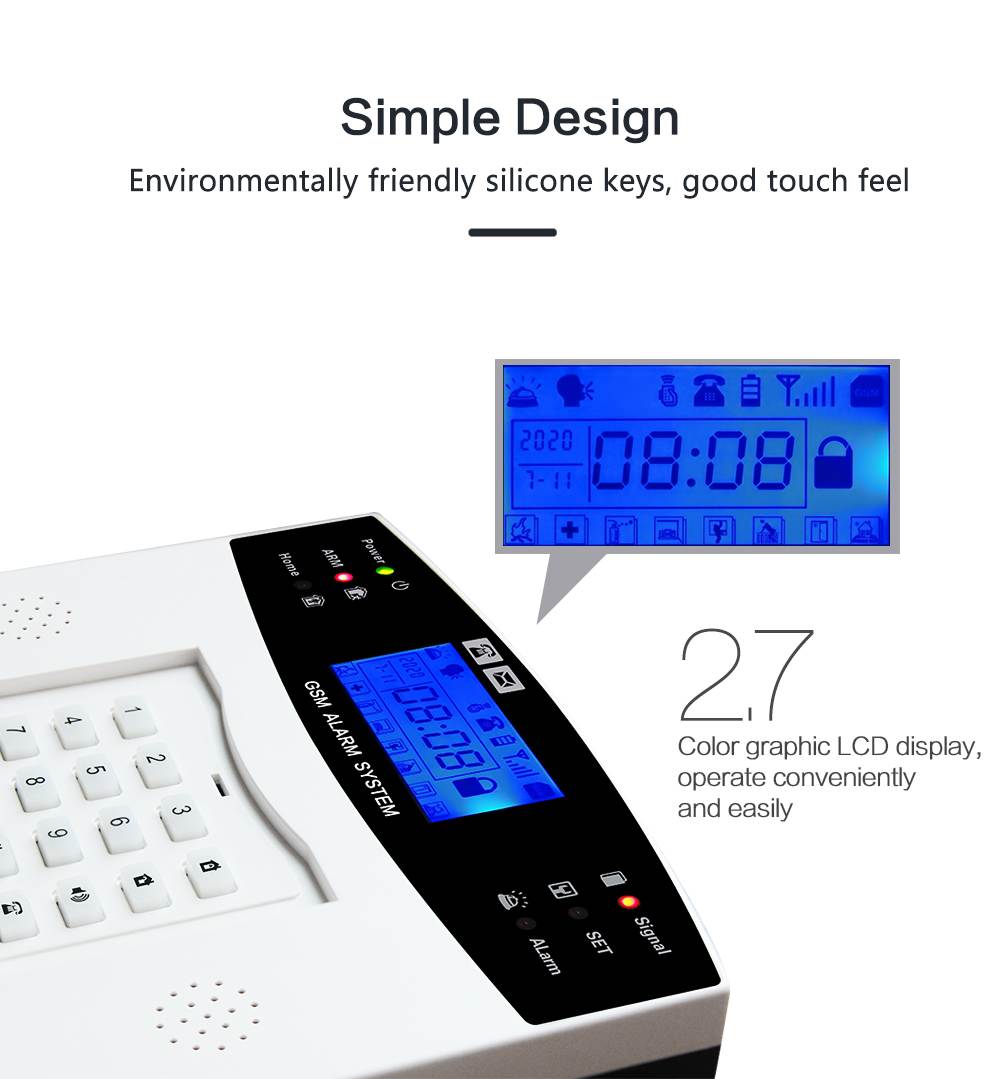

•LCD display with built-in clock,intuitive and convenient

•The whole process of real voice prompts,installation settings and daily operations are more user-friendly.

•Automatically send message when low battery.

•Ac power failure and AC recovery SMS prompt

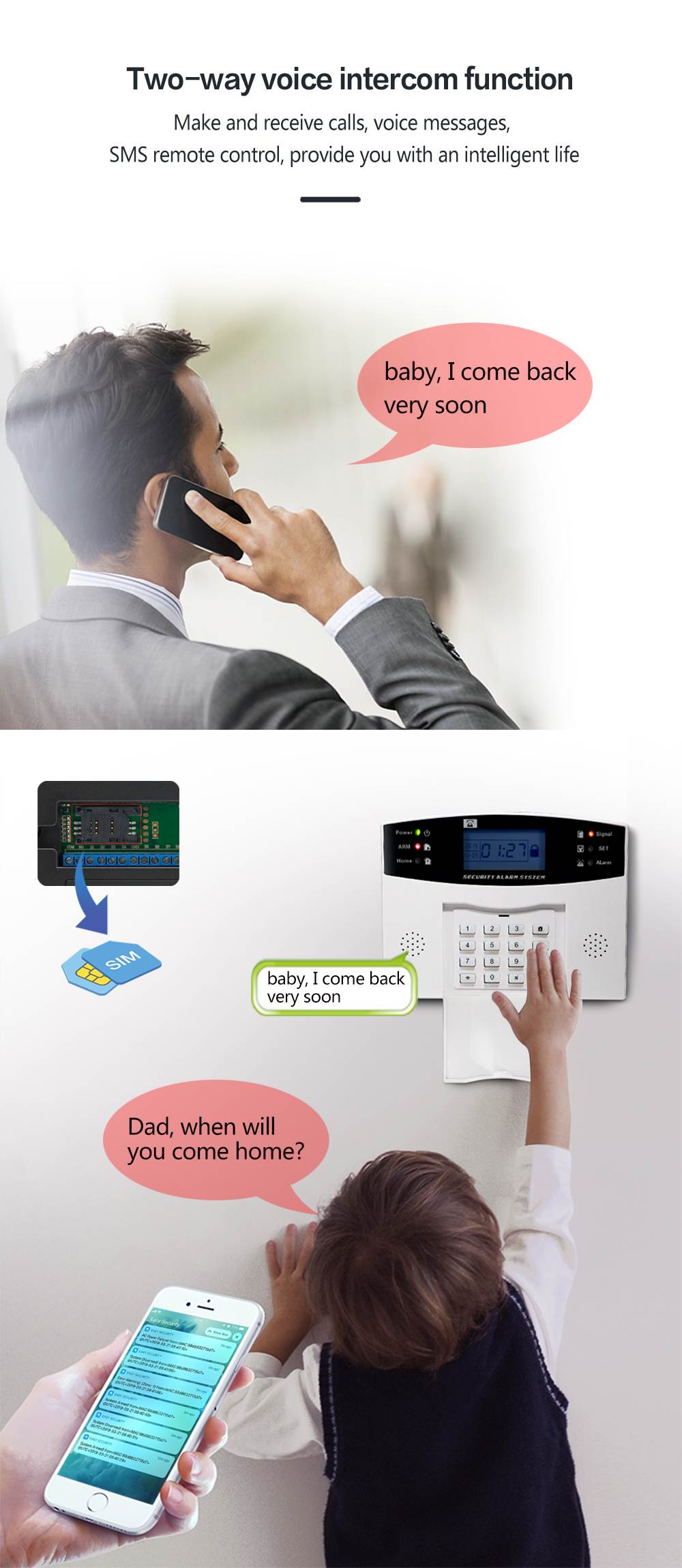

•Built-in intercom speaker, can realize duplex intercom function.

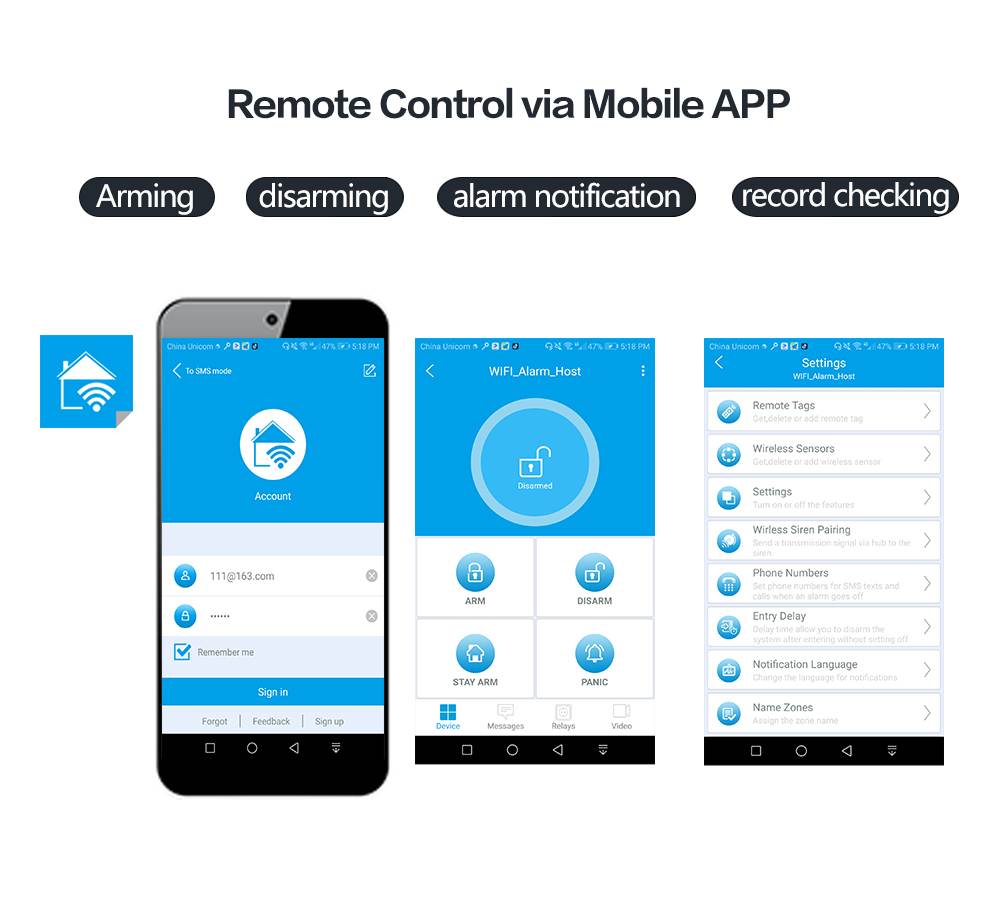

•Built-in 433 transceiver module, which can be linked to wireless siren and smart home system (optional)•Set and control the alarm by APP

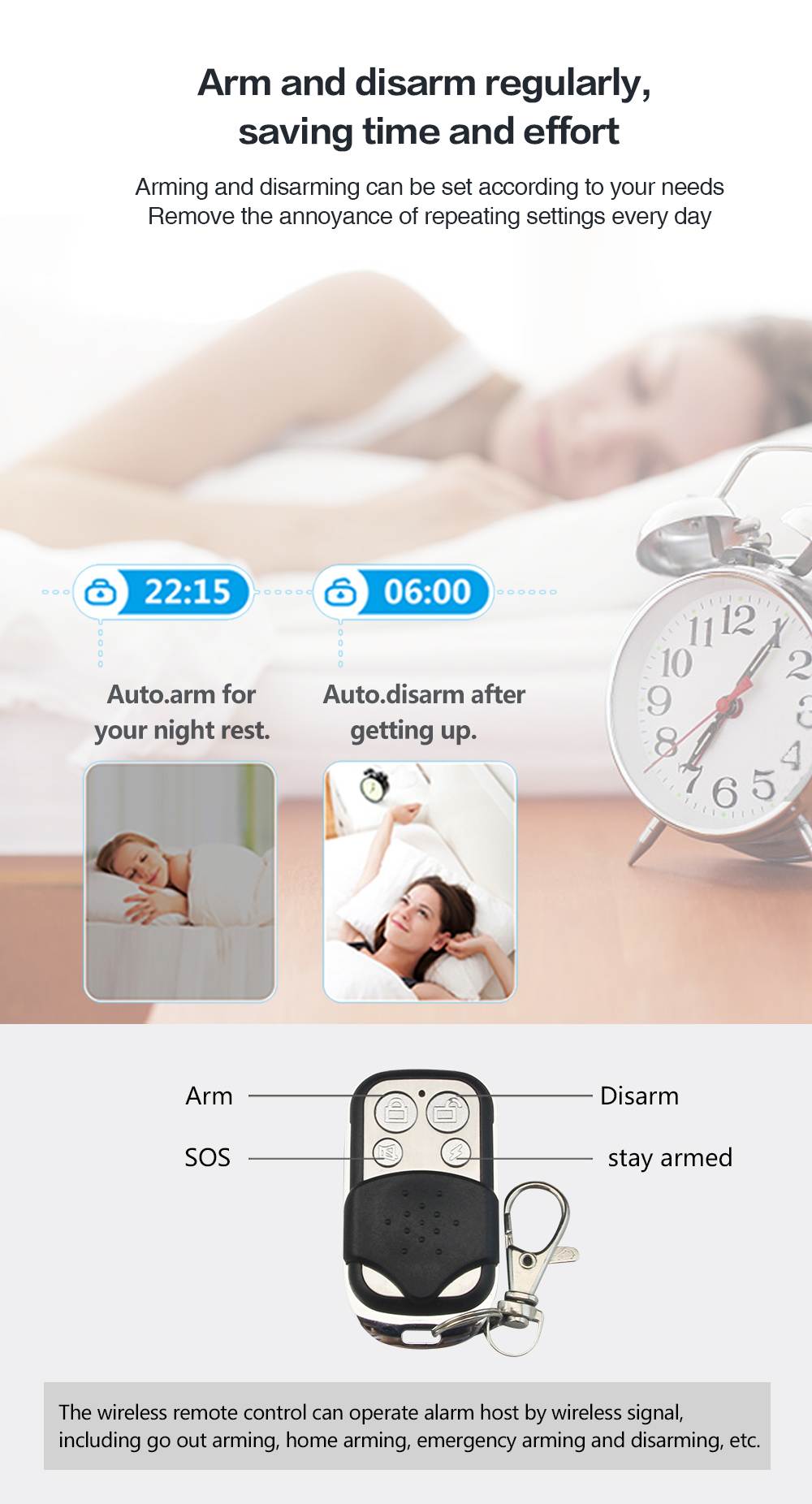

•Timing arm and disarm function

•Up to 6 groups of preset alarm phone numbers, SMS on/off and voice on/off can be set respectively

•2 groups of preset alarm SMS, push notifications via SMS & APP

•Built-in multi-languages,free to switch.

•Remote control in different places: the host arm, disarm, monitor, intercom and so on

•Additional functions：The alarm can be used as telephone，and it can make phone calls,inquire phone charges and prepaid

recharge by alarm keyboard.

•One-key control: arming out, arming at home, arming by remote control, arming by remote phone

•Instant, at home, 24 hours, bypass multiple zone programming functions

•Code matching: adding new accessories is convenient, fast, safe and efficient

•Remote control in different places: mainframe arming, disarming, monitoring, intercom and so on

•Event record query: host and APP can query historical event records.

•A variety of arming modes: remote control instant arming, outgoing host delayed arming, home host stay arming,

designated time timing arming, remote phone remote arming

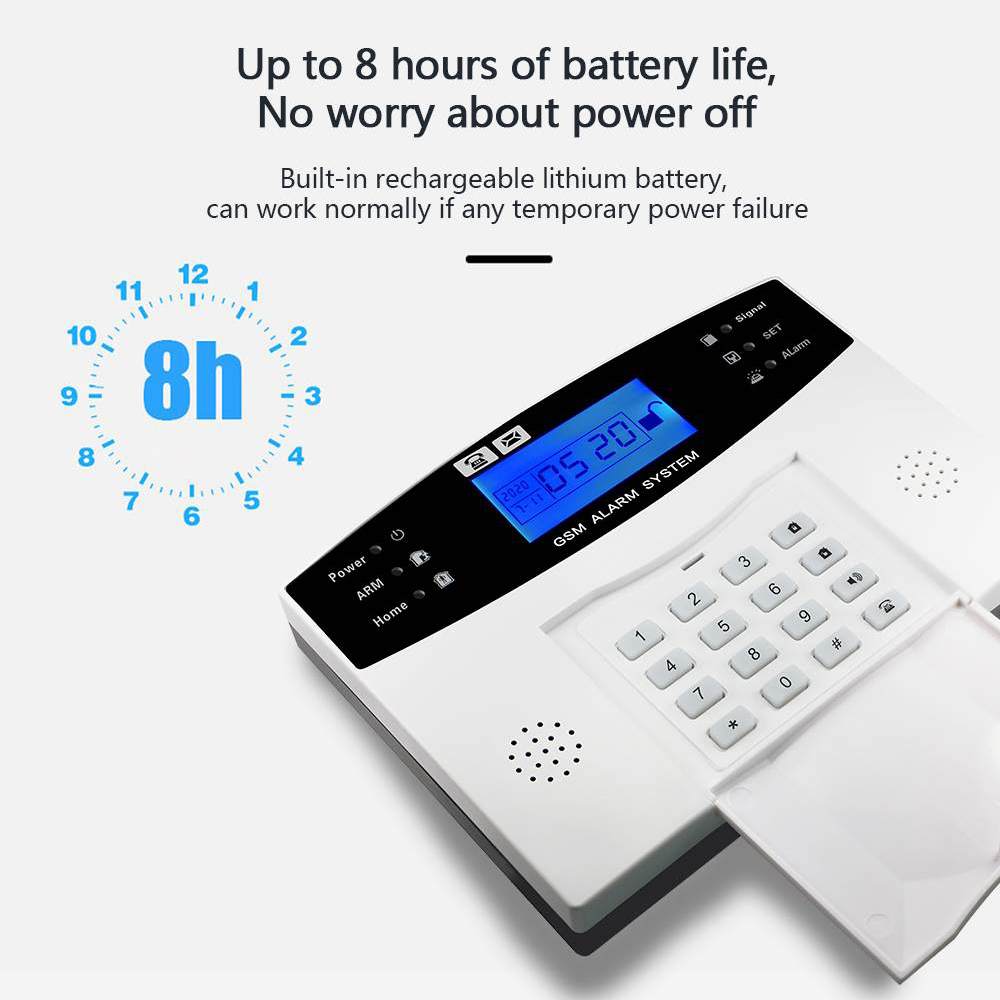

•Built-in lithium battery rechargeable battery pack, power failure alarm function.

Technical parameters

•Input voltage： DC5V

•Working current： screen off <100mA, screen on <200mA

•stand-by current：<55mA

•Alarm current：<600mA

•Radio frequency：433MHz

•RF code：1527(330K)

•GSM: 850/900/1800/1900MHz

•Backup battery： 3.7V/1000mAh rechargeable lithium

•Siren Alarm：>100dB@1m

•Wireless distance：<100m

•Operation temperature：-10℃—55℃

•Relative humidity: <80%RH (non-condensing)
