Overview:

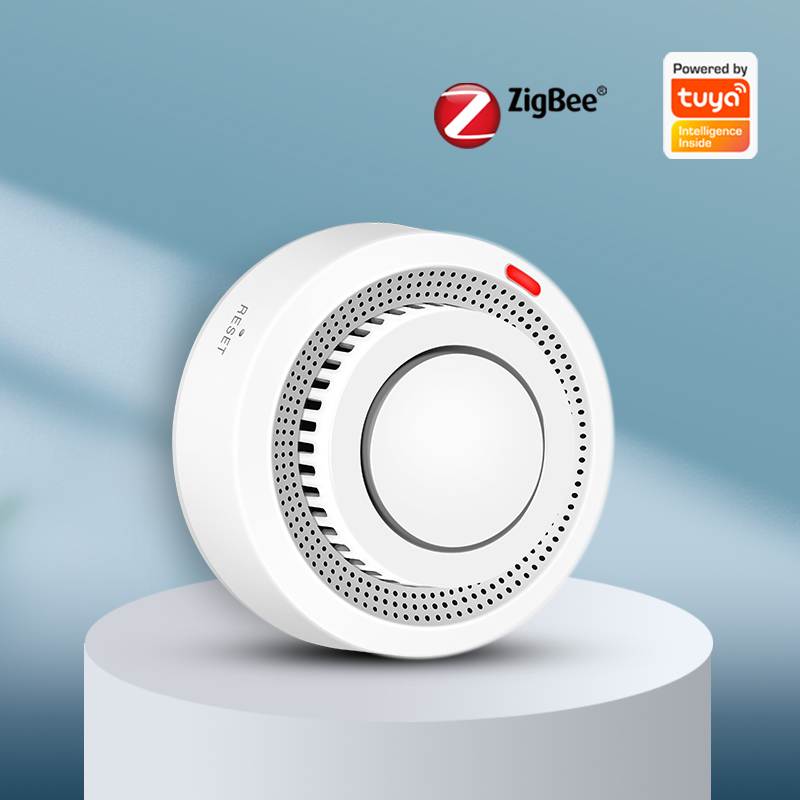

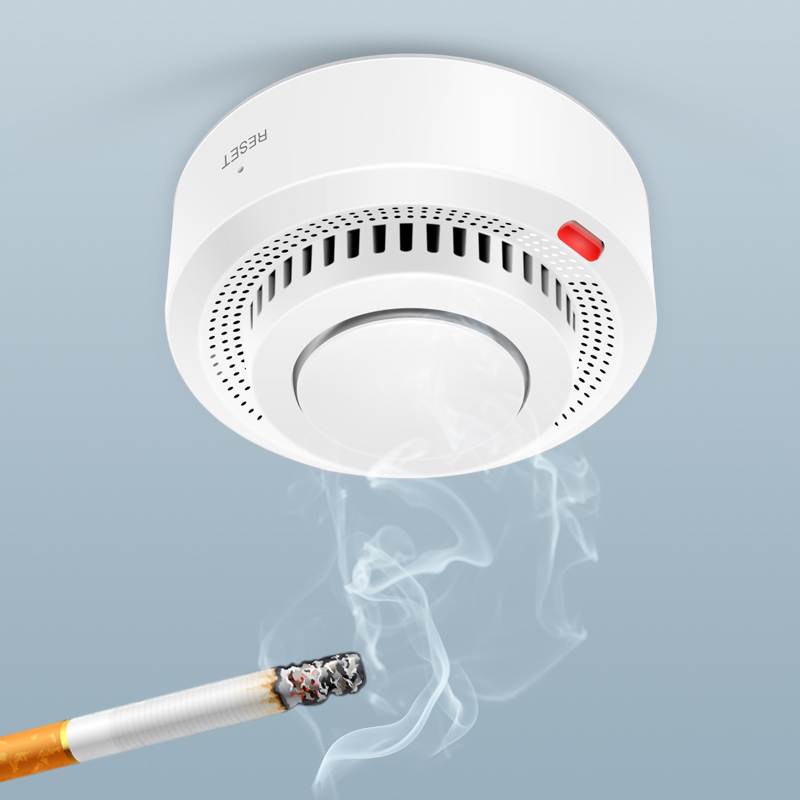

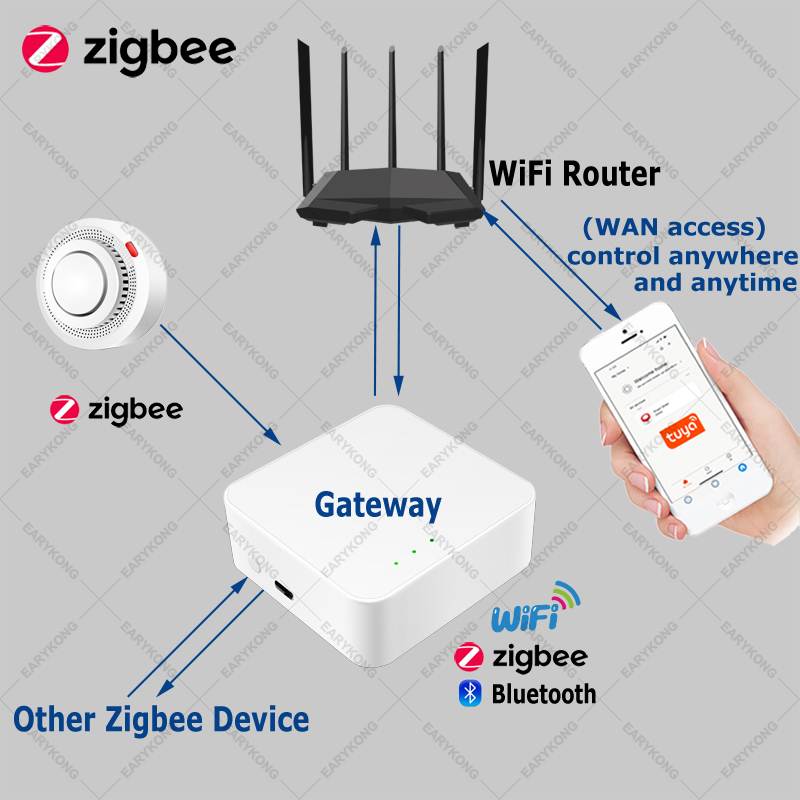

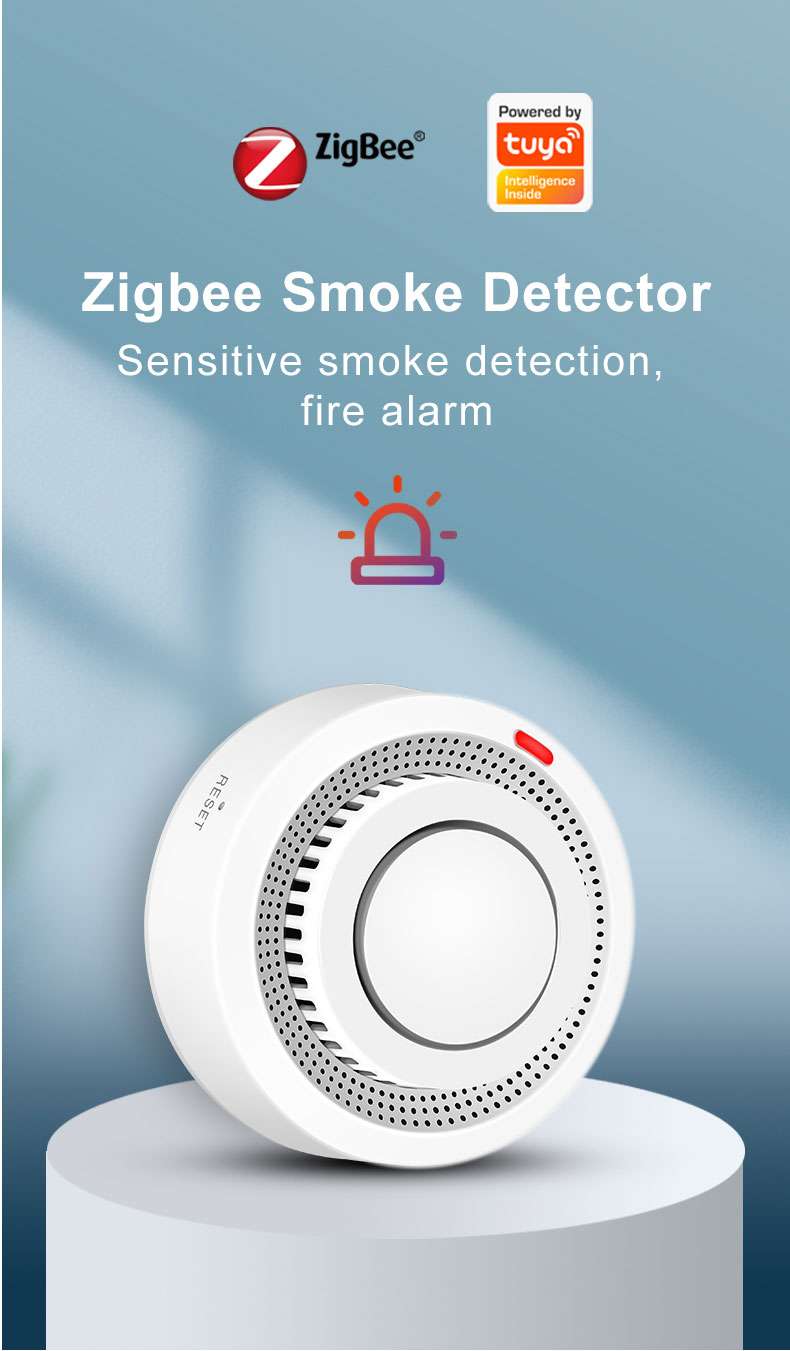

This is an intelligent photoelectric smoke detector designed for early warning of fire hazards in residential and commercial spaces. Utilizing Zigbee wireless technology for seamless integration into smart home systems, it efficiently detects visible smoke particles typical of smoldering fires. The detector emits a loud 85dB alarm and triggers instant mobile app notifications via the connected gateway when smoke is detected, providing critical time for response.

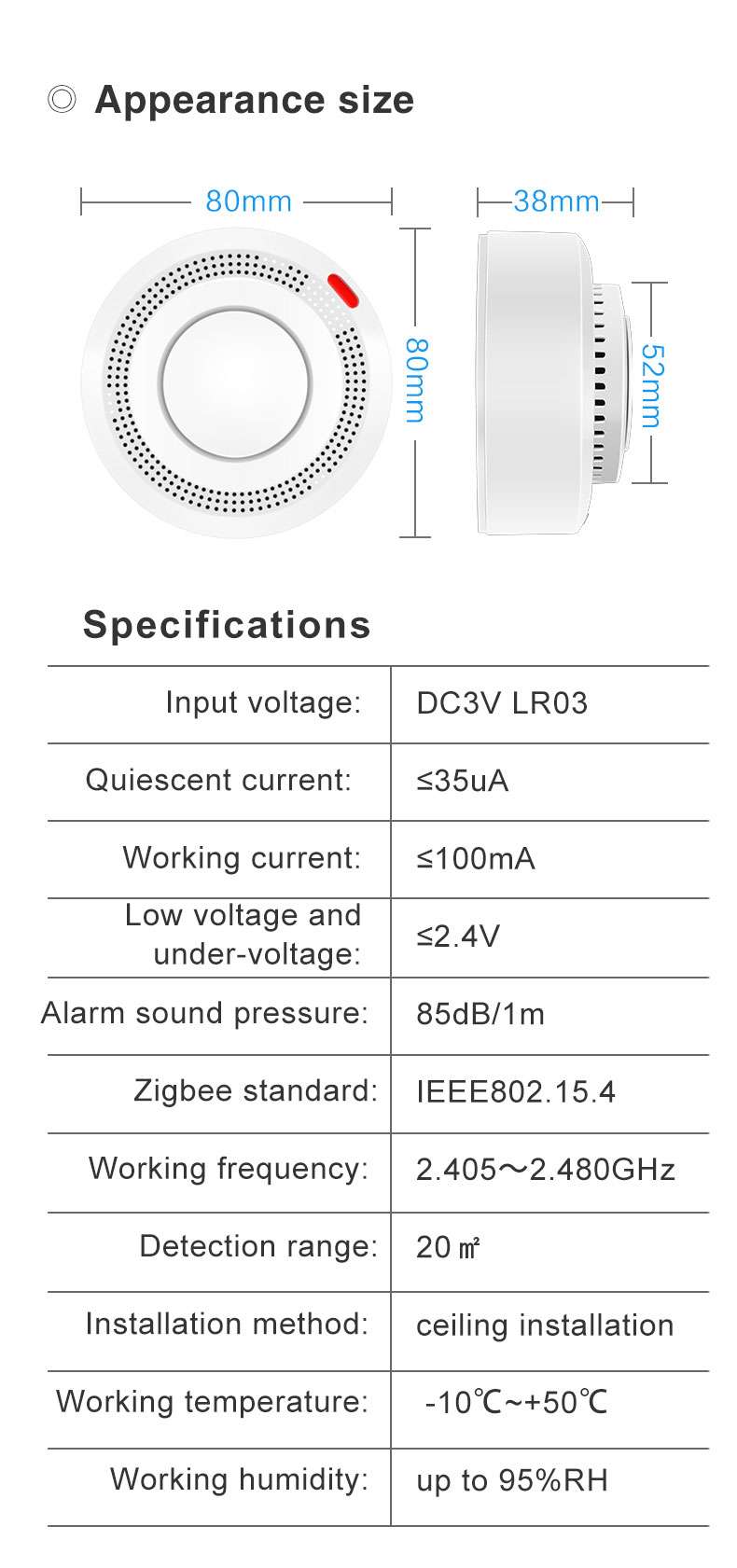

Technical Specifications:

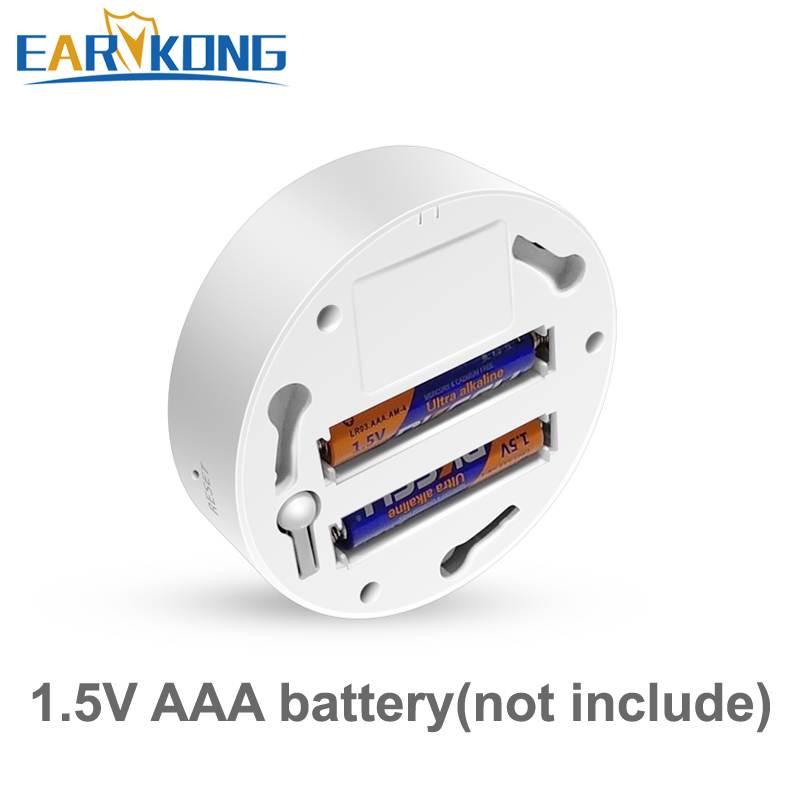

• Power Supply: 2× LR03 (AAA) 1.5V Batteries

• Standby Current: ≤35μA

• Alarm Current: ≤100mA

• Low Voltage Alert: ≤2.4V

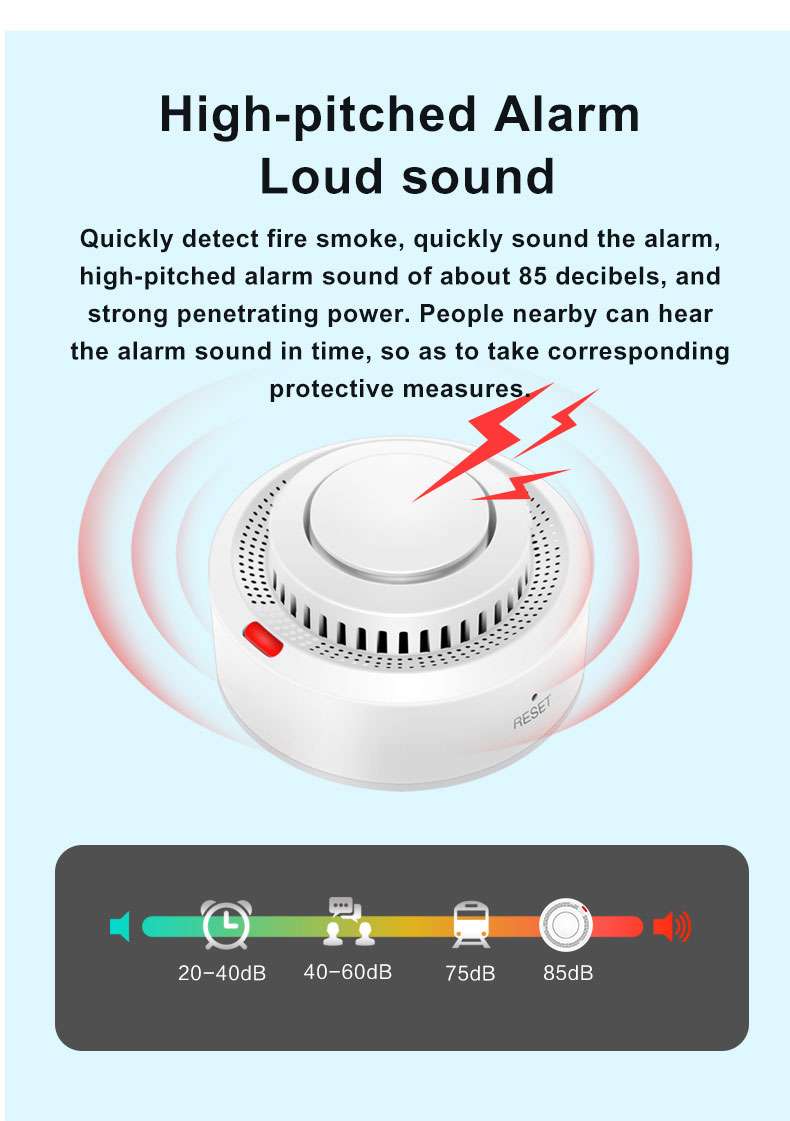

• Alarm Sound Level: 85dB/1m

• Zigbee Protocol: IEEE 802.15.4

• Operating Frequency: 2.405–2.480 GHz

• Detection Coverage: Up to 20 m²

• Operating Temperature: -10°C to +50°C

• Operating Humidity: ≤95% RH
