Overview:

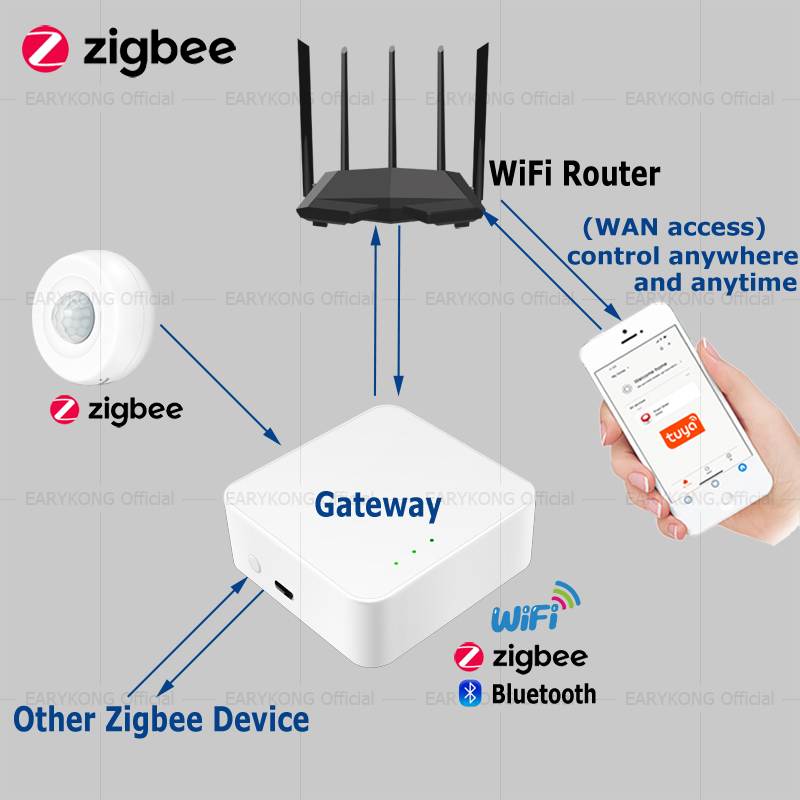

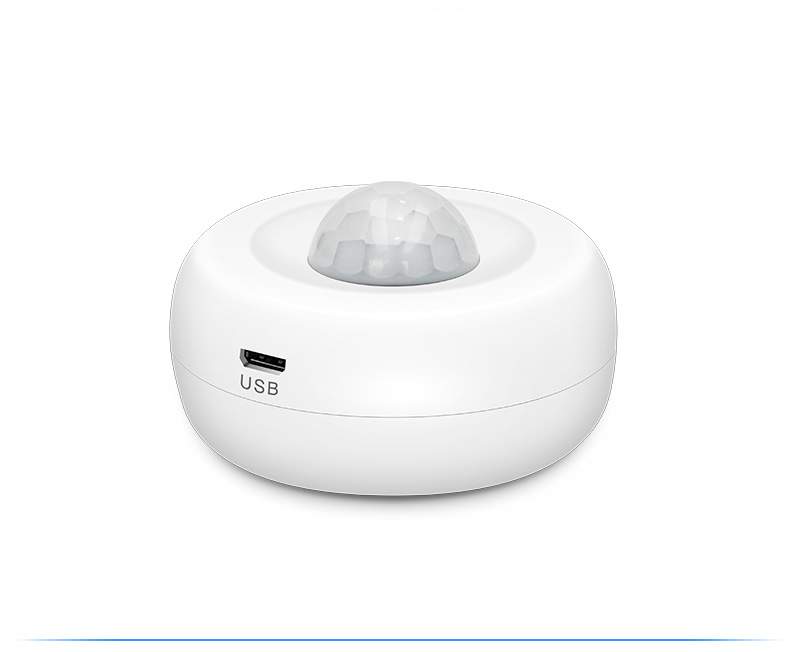

This is a Zigbee-enabled Passive Infrared (PIR) motion sensor designed for seamless integration into smart home ecosystems. It offers 360° detection coverage when ceiling-mounted and is ideal for use in security and automation systems. The sensor requires a Zigbee gateway for operation and connects via the Taya Smart app for real-time alerts and control.

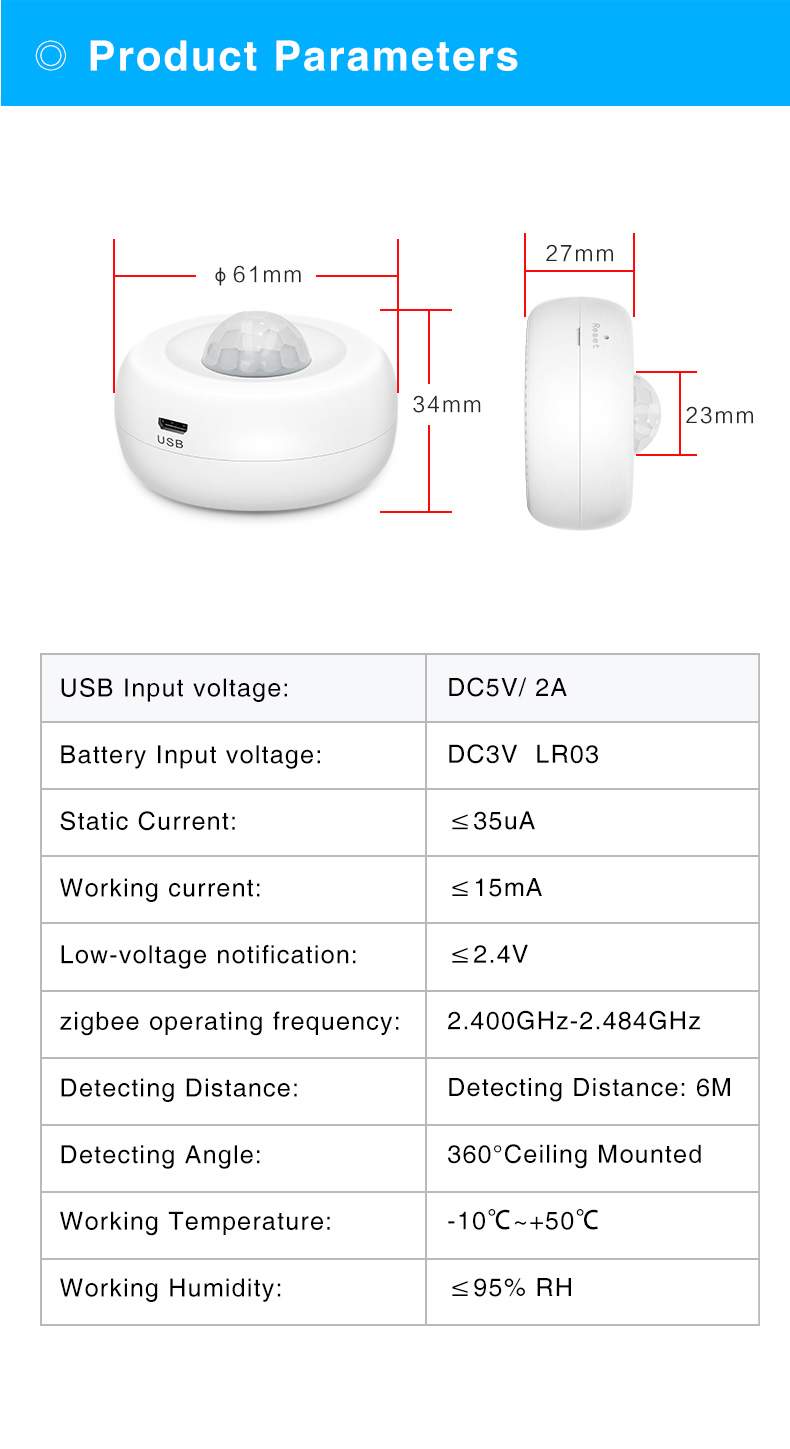

Technical Specifications:

• Power Supply: 2× 1.5V AA batteries (DC3V)

• Standby Current: ≤35μA

• Working Current: ≤15mA

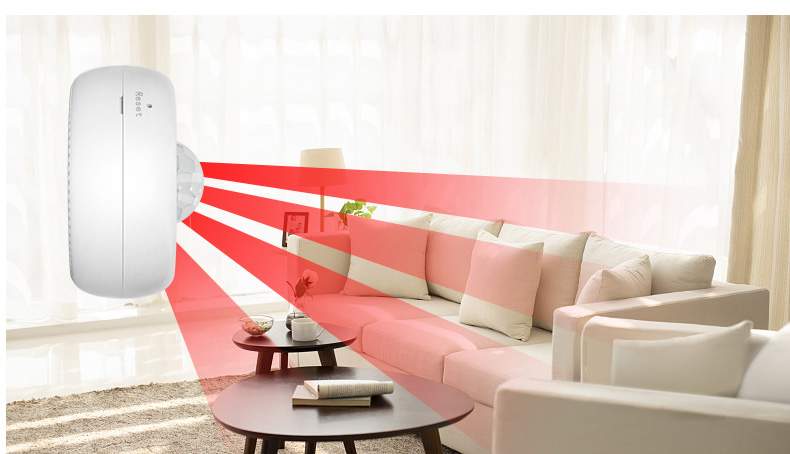

• Detection Range: Up to 6 meters

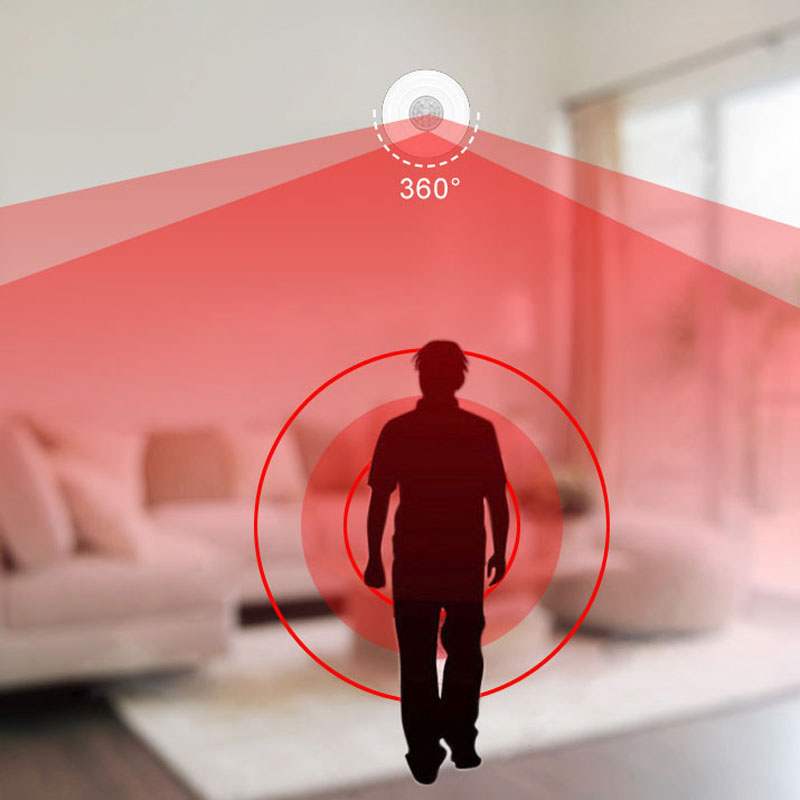

• Detection Angle: 360° (ceiling mount)

• Operating Frequency: 2.4GHz Zigbee

• Operating Temperature: -10°C to +50°C

• Operating Humidity: 8%–95% RH (non-condensing)

• Low Voltage Alert: ≤2.4V
