Overview:

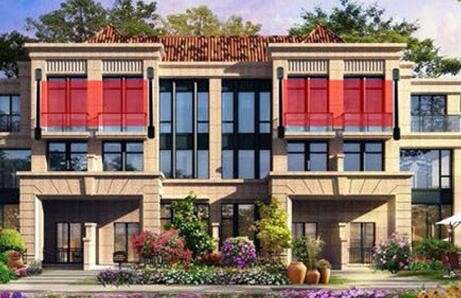

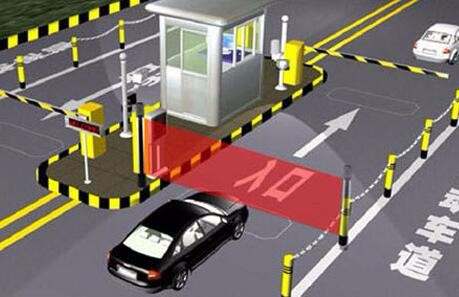

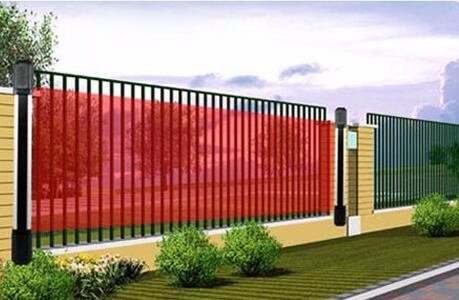

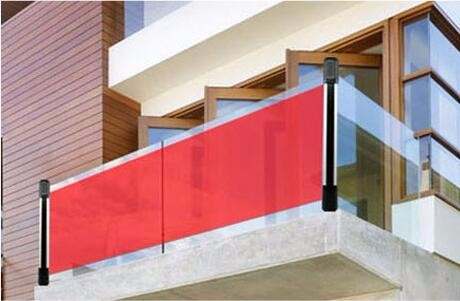

This infrared anti-theft barrier is a high-tech security device designed to protect indoor and outdoor areas by creating an invisible detection zone using infrared beams. It is ideal for securing doors, windows, balconies, fences, and aisles in homes, schools, villas, factories, and commercial spaces. The system detects intrusions by monitoring interruptions in the infrared beam pattern and triggers an alarm to prevent unauthorized access.

Technical Specifications:

• Beam Options: 2/3/4/6/8/10 beams

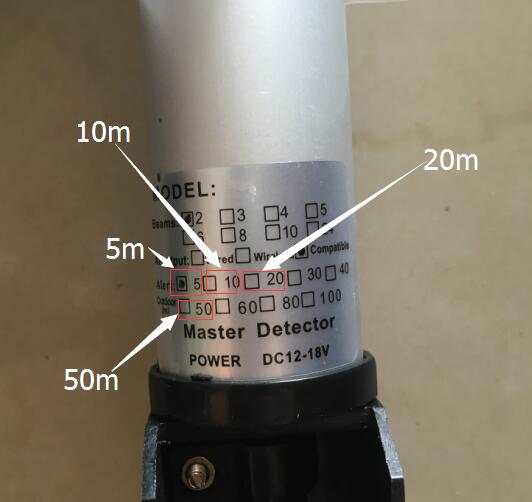

• Detection Distance: Up to 20m

• Power Supply: DC12V

• Standby Current: ≤90mA (emitter), ≤70mA (receiver)

• Alarm Output: NC/COM relay contacts

• Operating Conditions: Suitable for outdoor/wet environments

• Housing Material: High-quality aluminum alloy with anti-corrosion surface treatment

• Dimensions: Length ranges from 36cm (2 beams) to 208cm (10 beams)

• Weight: 0.48kg (2 beams) to 1.98kg (10 beams)
