Product Description:

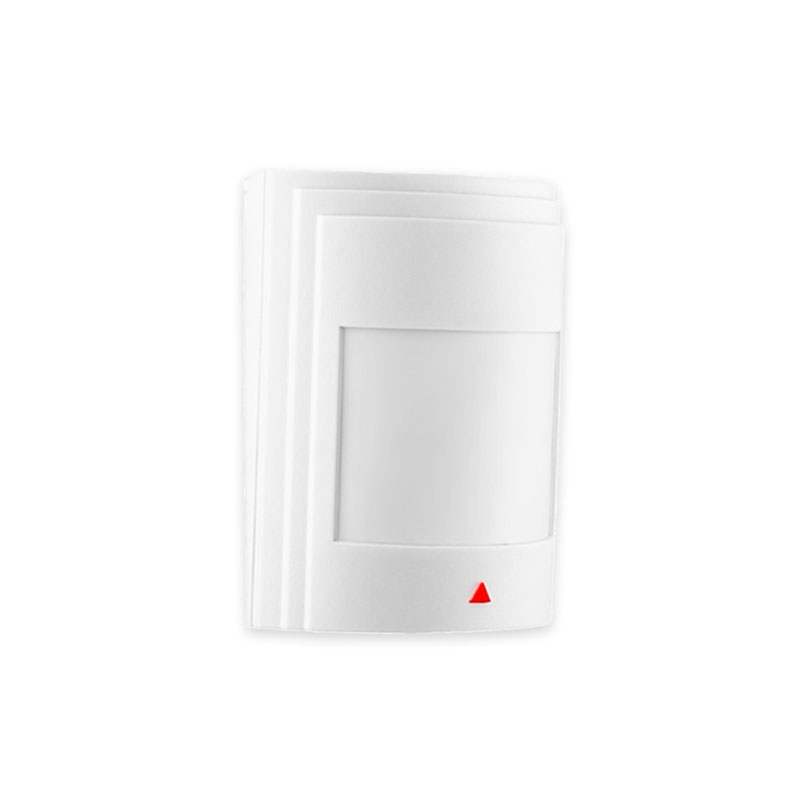

This is a wired PIR (Passive Infrared) detector designed for security systems. It features a redesigned Auto Pulse Signal Processing system for improved detection accuracy. The detector includes Automatic Temperature Compensation to minimize false alarms caused by environmental temperature changes and an RF Metal Shield for protection against radio frequency interference.

Technical Specifications:

• Sensor Type: Dual Element Infrared

• Operating Temperature: -10°C to +50°C (14°F to +122°F)

• Power Input: 9 to 16V DC/Vcc, 31mA (Max)

• Coverage/Viewing Angle: 110° angle

• Detection Range: 35 ft x 35 ft (10.6m x 10.6m) at a recommended installation height of 7 to 9 ft (2m to 2.7m)
