Product Description:

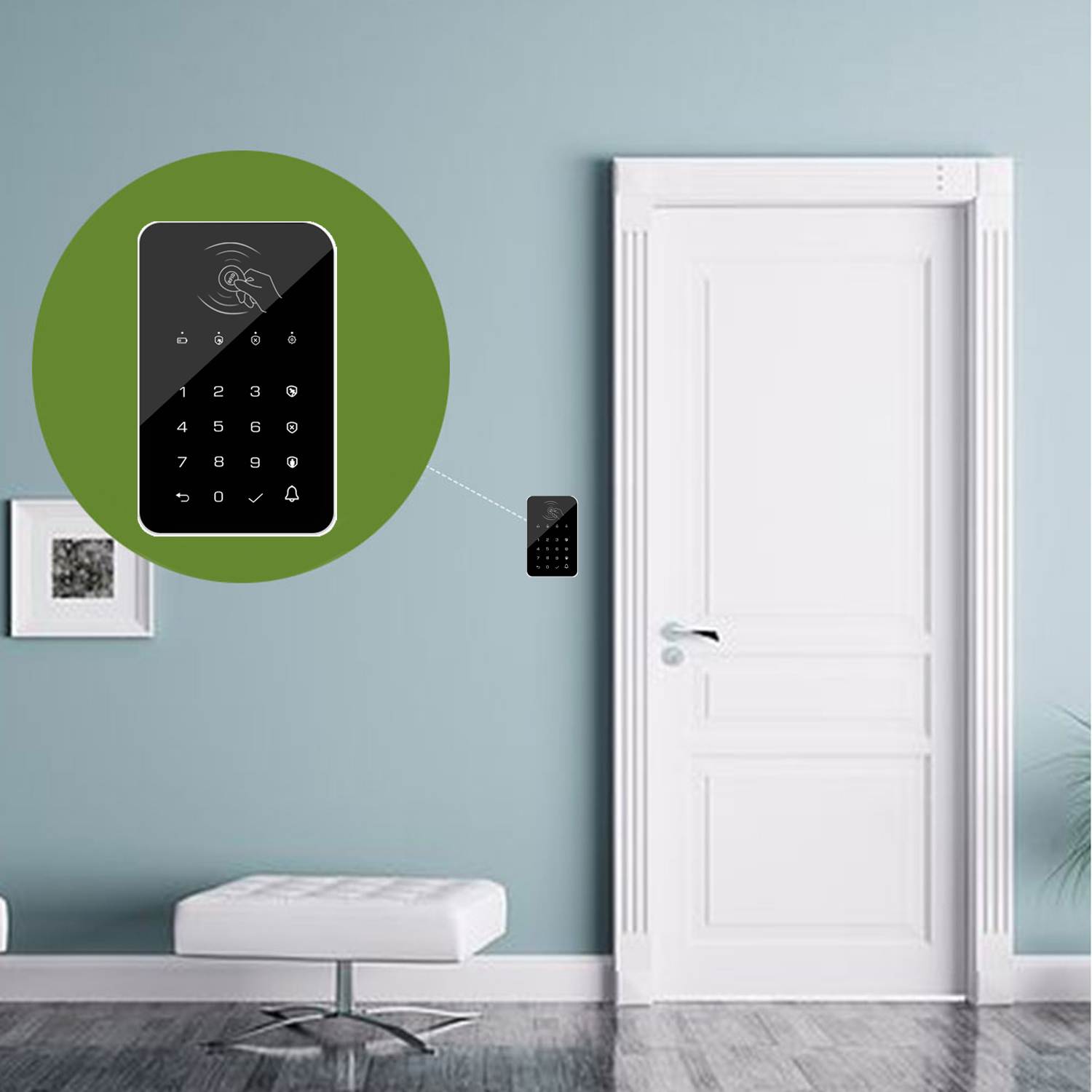

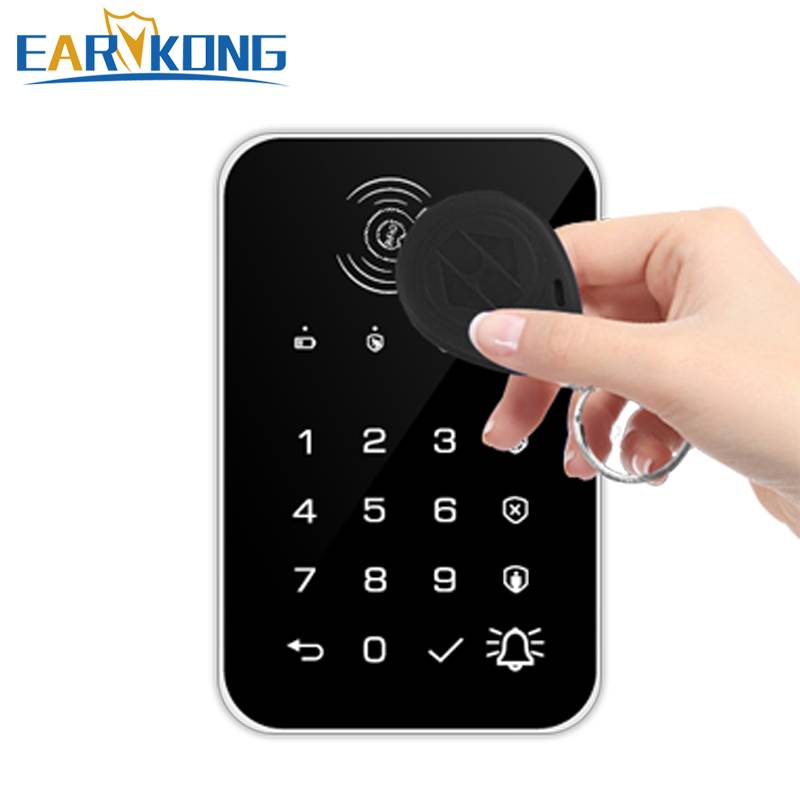

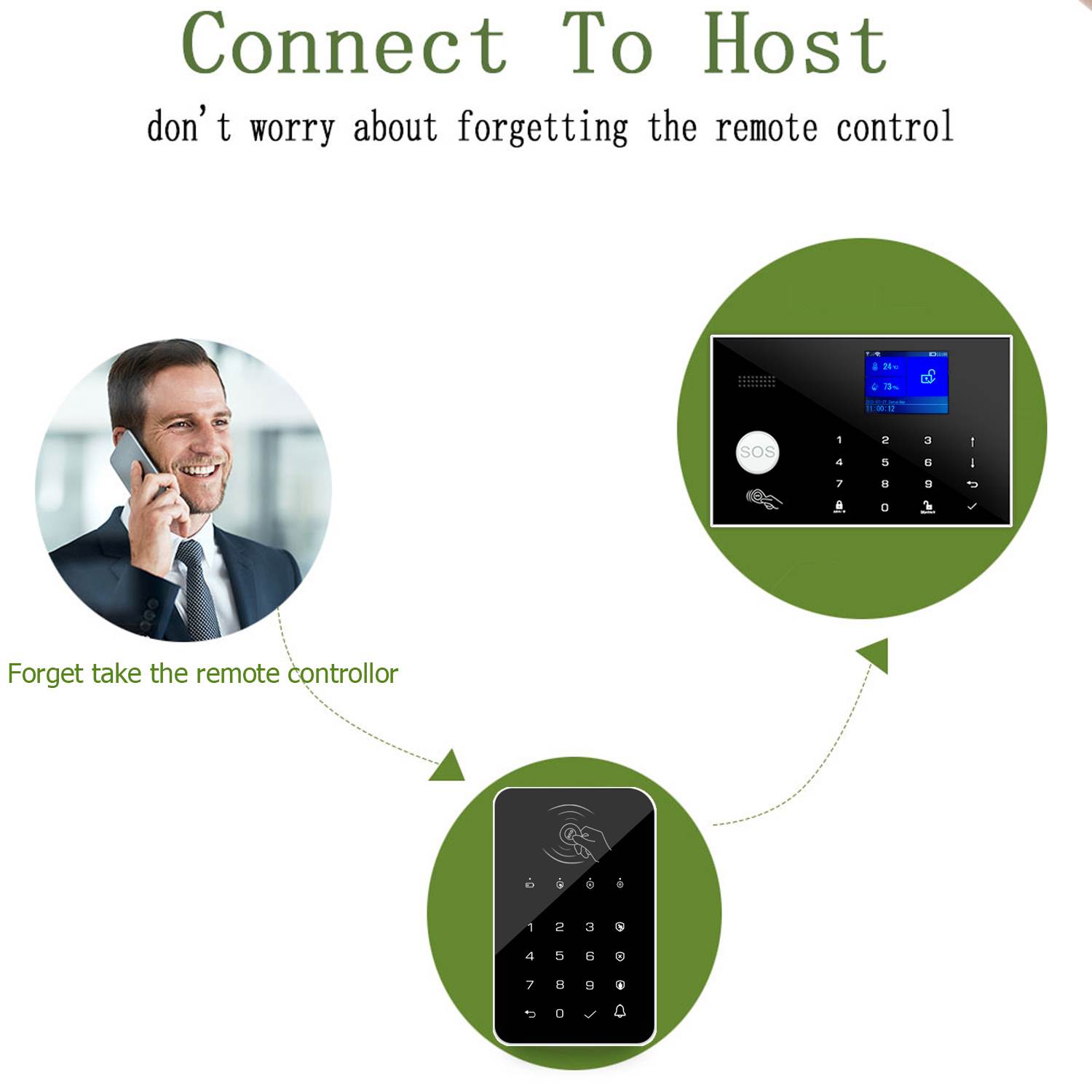

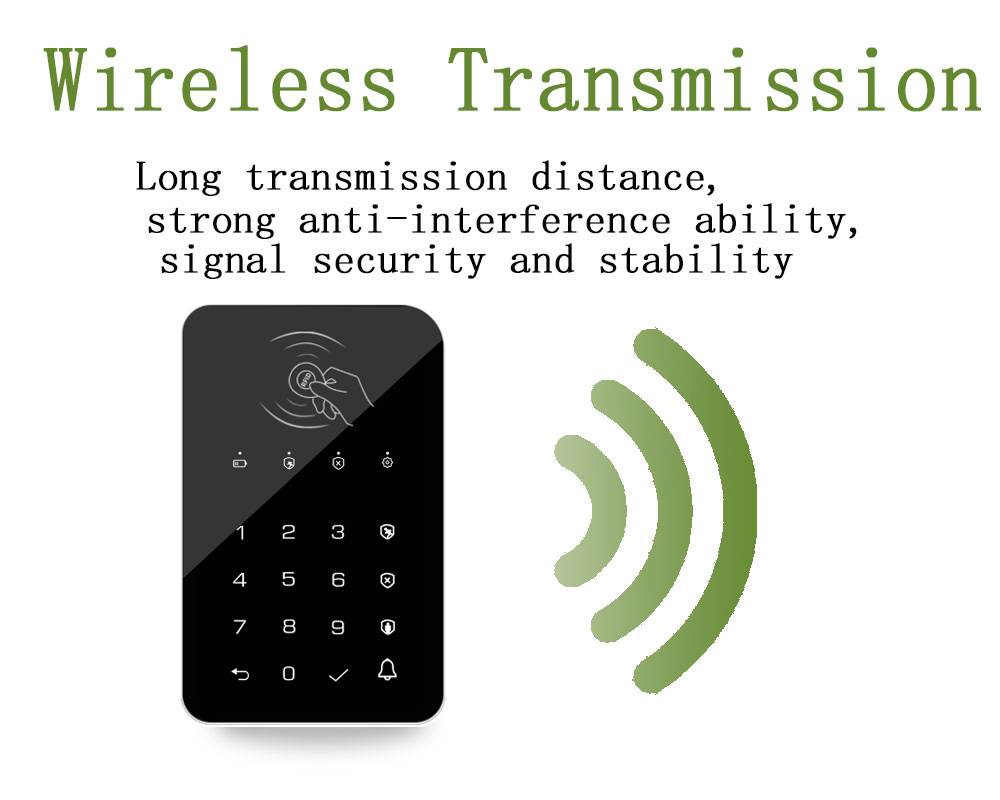

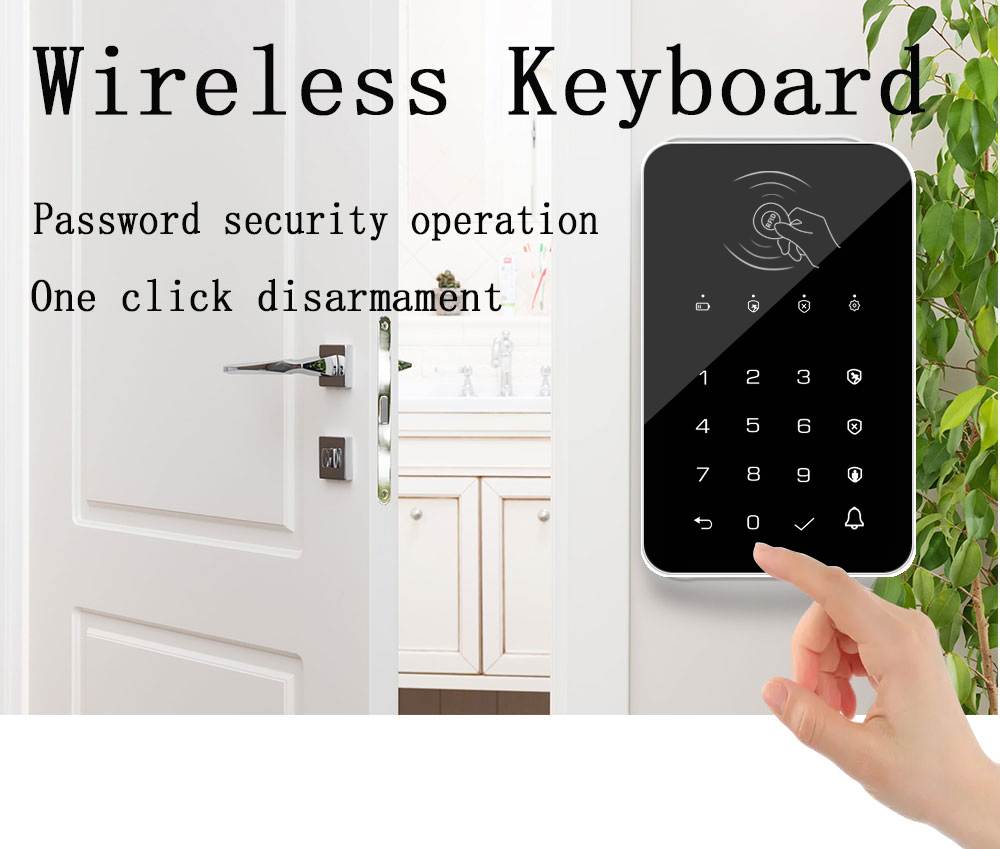

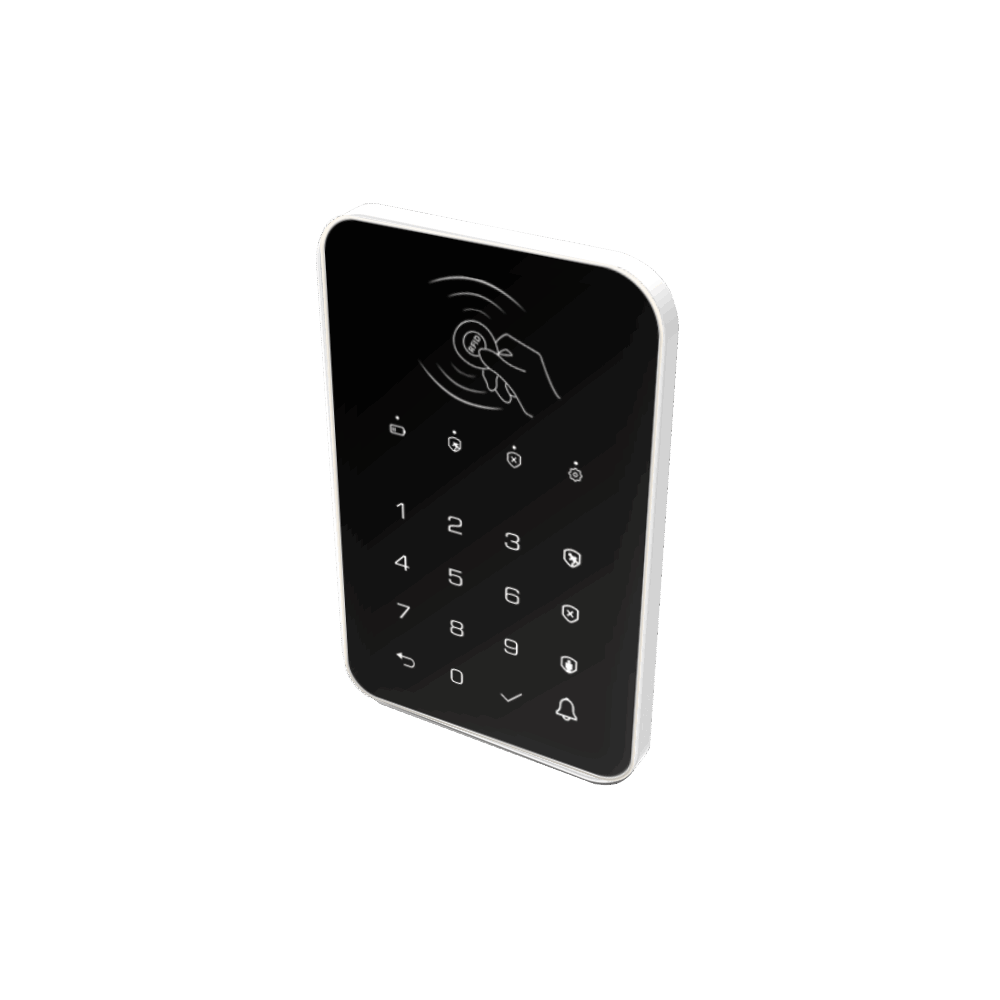

This product is a wireless touch keypad designed to arm and disarm a security system using either a passcode or an RFID tag. It communicates with an alarm hub using the eV1527 protocol and boasts an effective range of up to 80 meters in open space. It is powered by an internal rechargeable lithium-ion battery that provides up to 3 months of operation on a single charge. The keypad features a sleek design with a backlit keypad and status indicators, and supports functions like Away/Home arming, disarming, and a dedicated doorbell button.

Specifications:

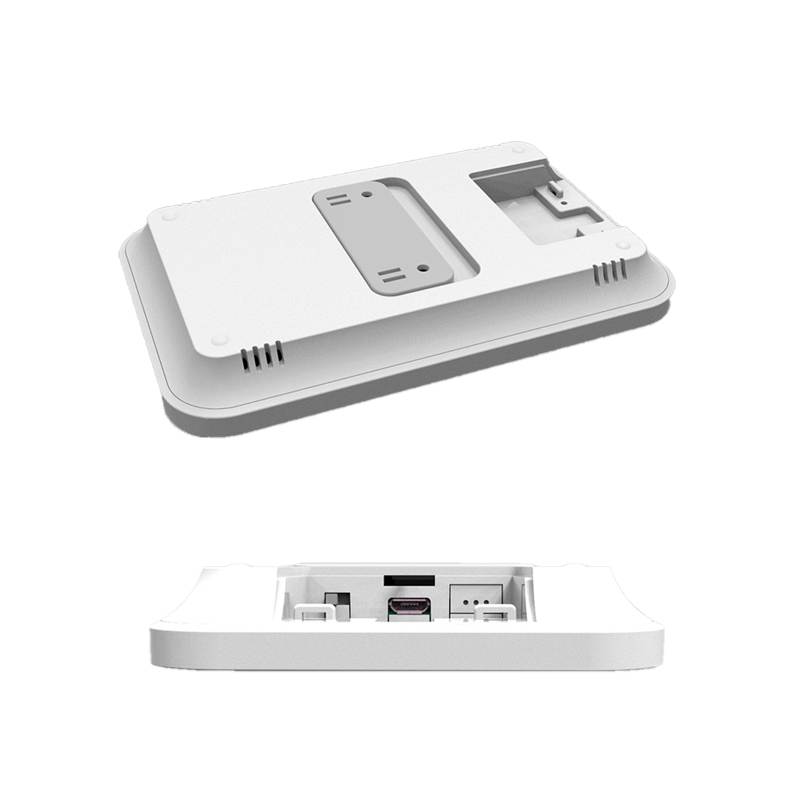

• Power Supply: Micro USB +5VDC/1000mA (for charging)

• Backup Battery: 3.7V, 500mAh Lithium-ion Battery

• Power Consumption: <15μA (Sleep mode), <15mA (Ready mode)

• Radio Frequency: 433MHz

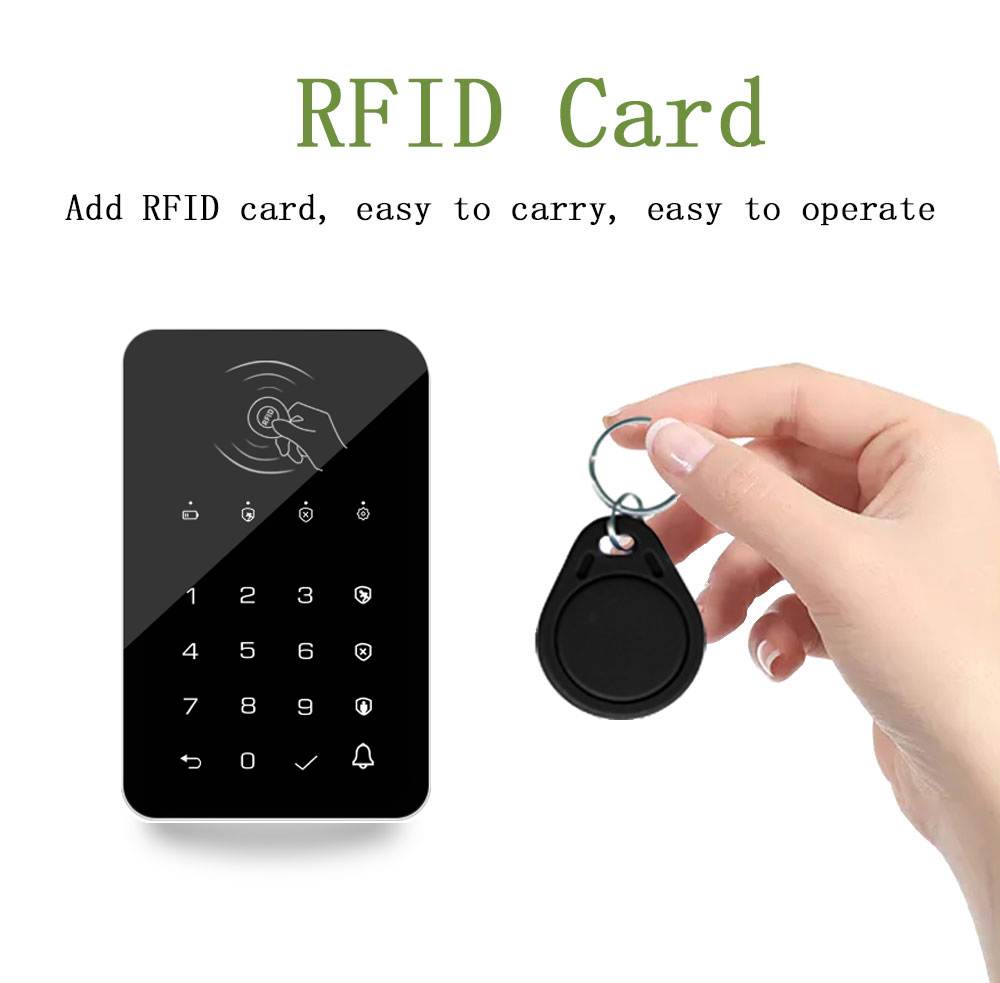

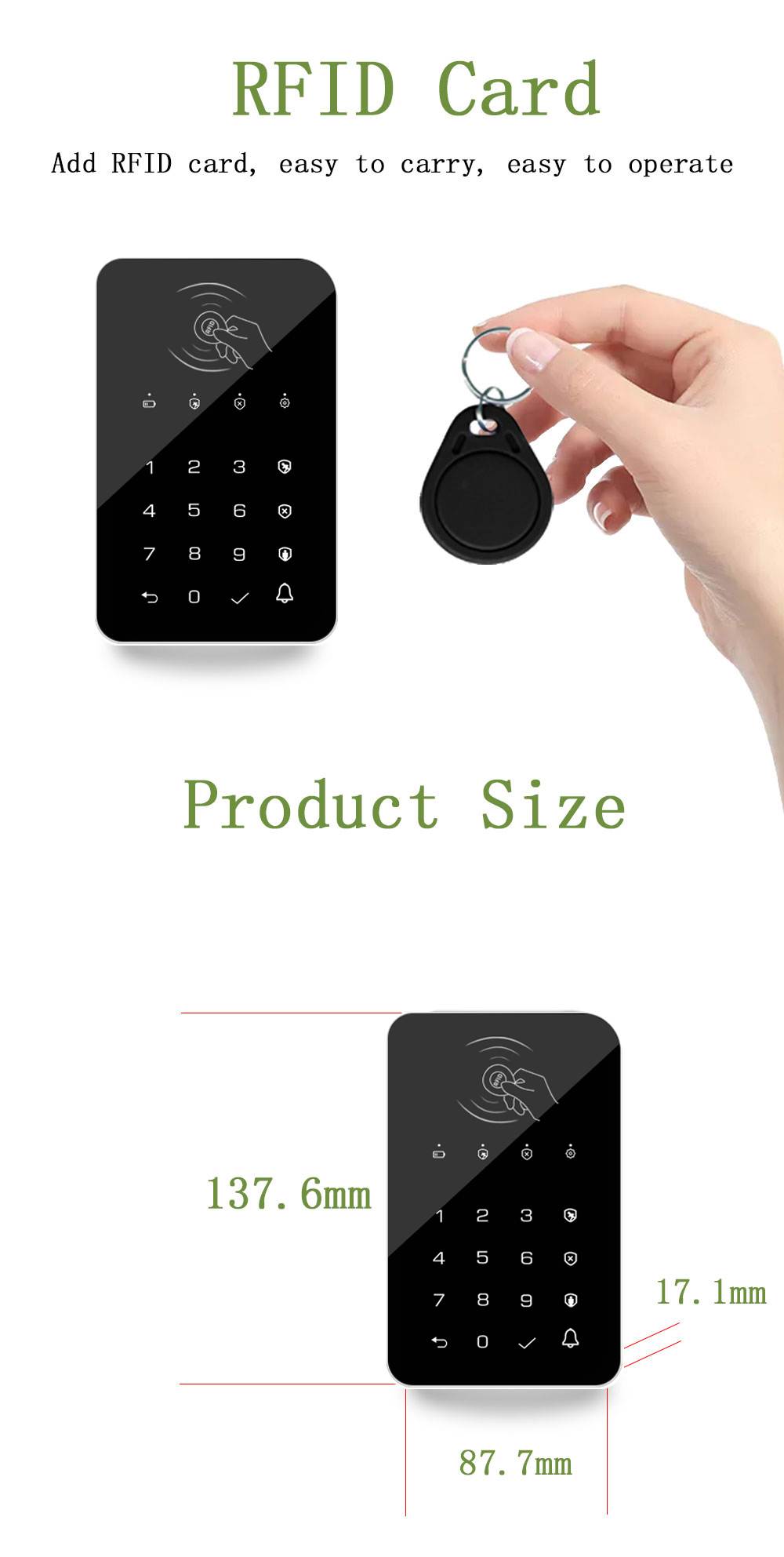

• RFID Chip Type: 4100/4200

• RFID Frequency: 125KHz

• Operation Temperature: -10°C ~ +55°C
